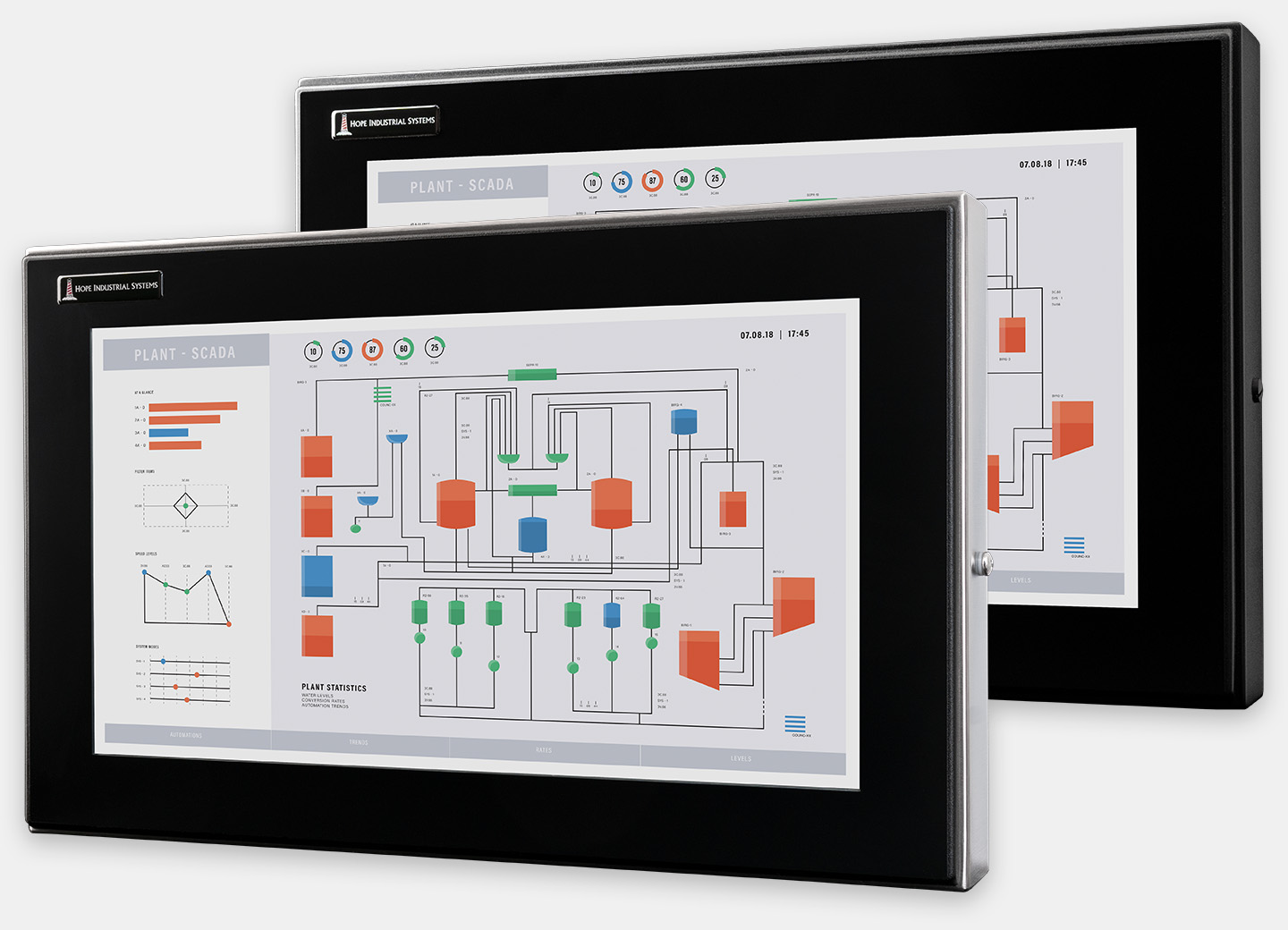

Our Industrial Universal Mount Monitors form the core of the modular Hope Industrial Workstation System. Using the included VESA or yoke mount points, the fully enclosed display can be mounted in a limitless range of configurations depending on the individual needs of each user’s application. Cable connections are protected inside the monitor cavity, with cables exiting through a variety of sealed, wash-down rated cable exit glands.

Optional sealed industrial keyboards can be added to create a complete HMI solution, and fully sealed PC or thin client enclosures allow most standard computer hardware to be mounted directly to the workstation. Industrial KVM extender options allow placement of the PC up to 300 m (1,000′) away using shielded CATx cable.

These complete workstations can be assembled in the field or fully assembled and tested at our factory when ordered with our optional Workstation Assembly Service.

Rear Views

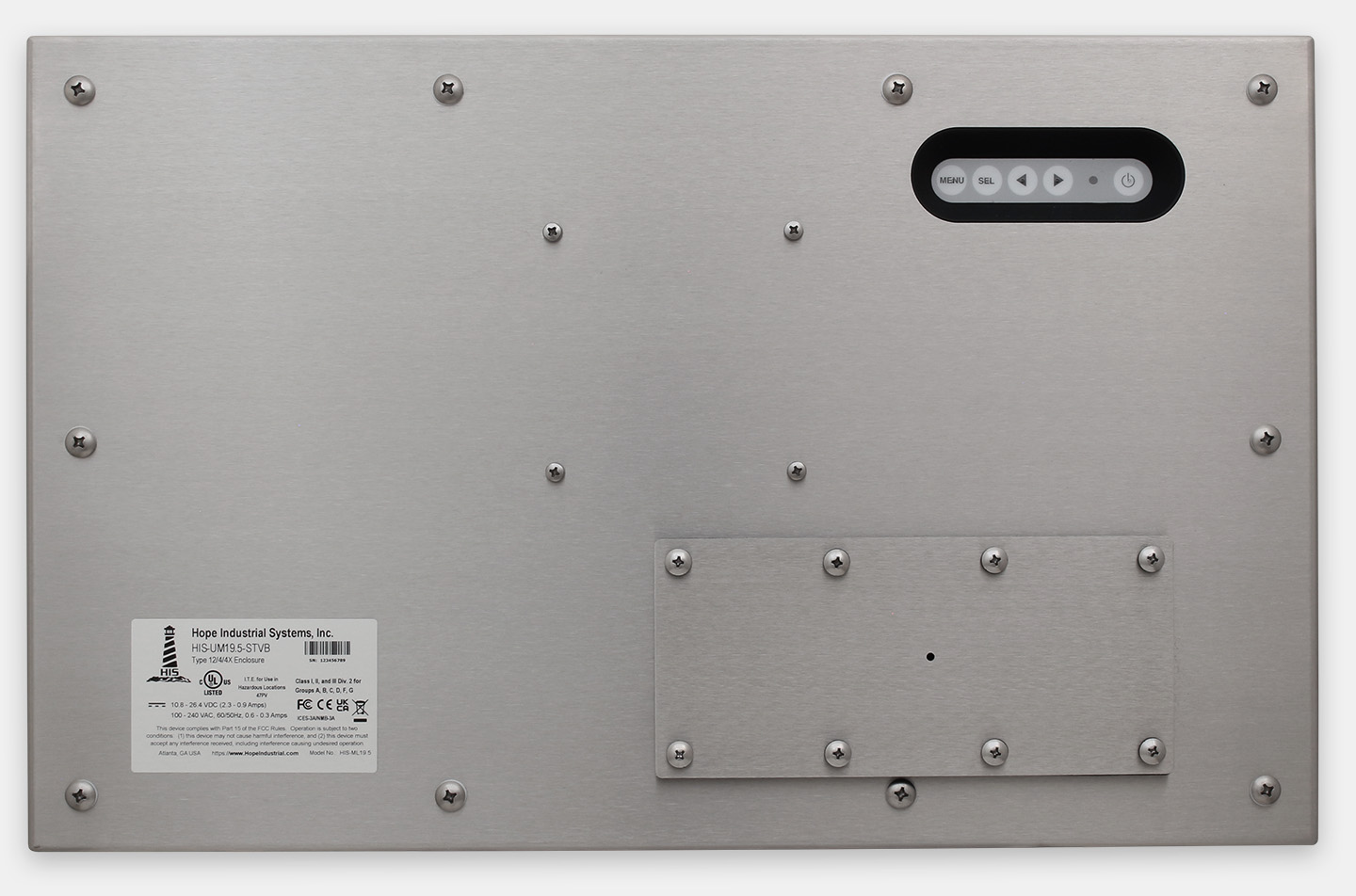

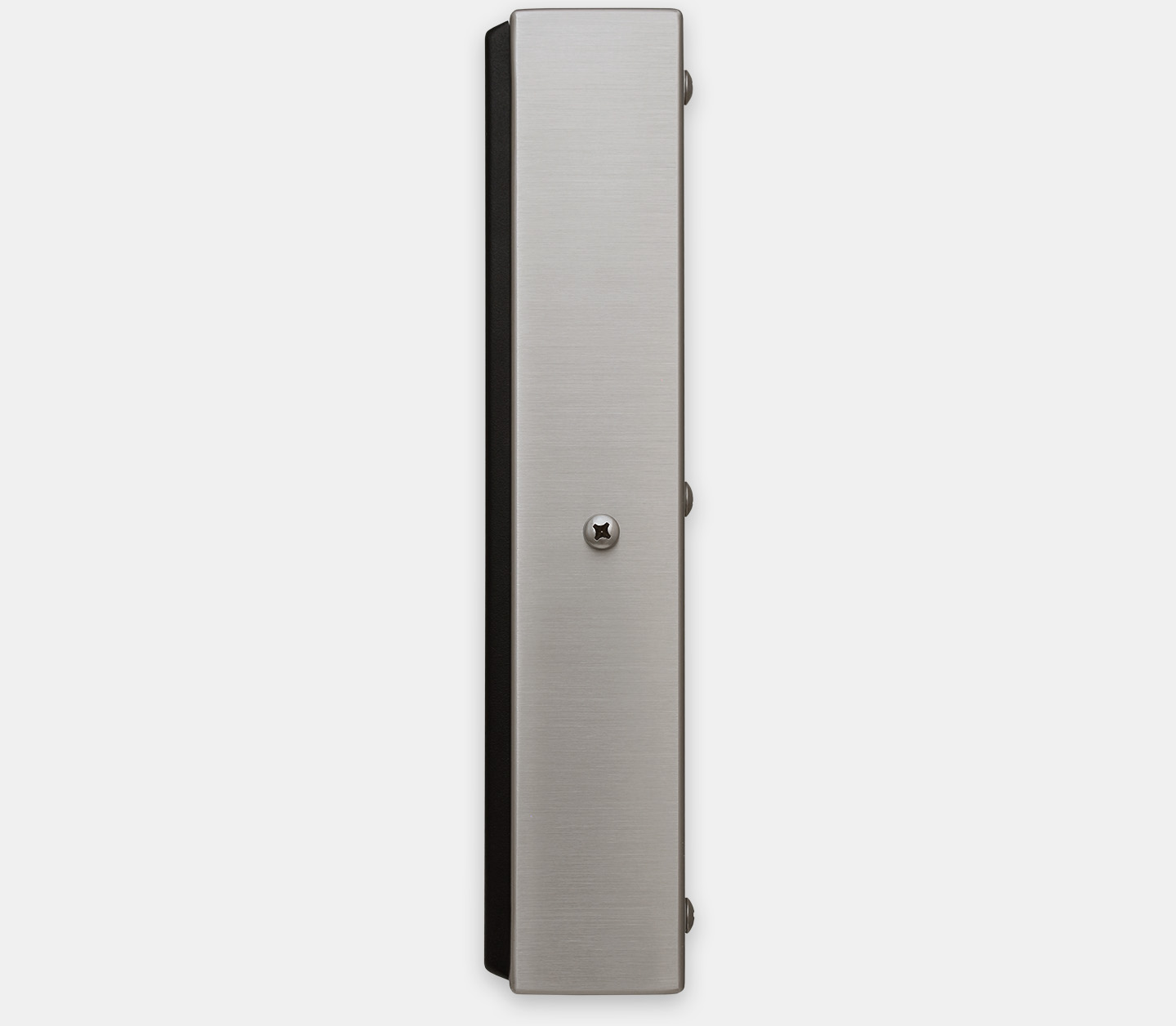

Rear views of NEMA 4/4X Rated Widescreen 19.5" Universal Mount Monitors showing Industrial Enclosure features and options

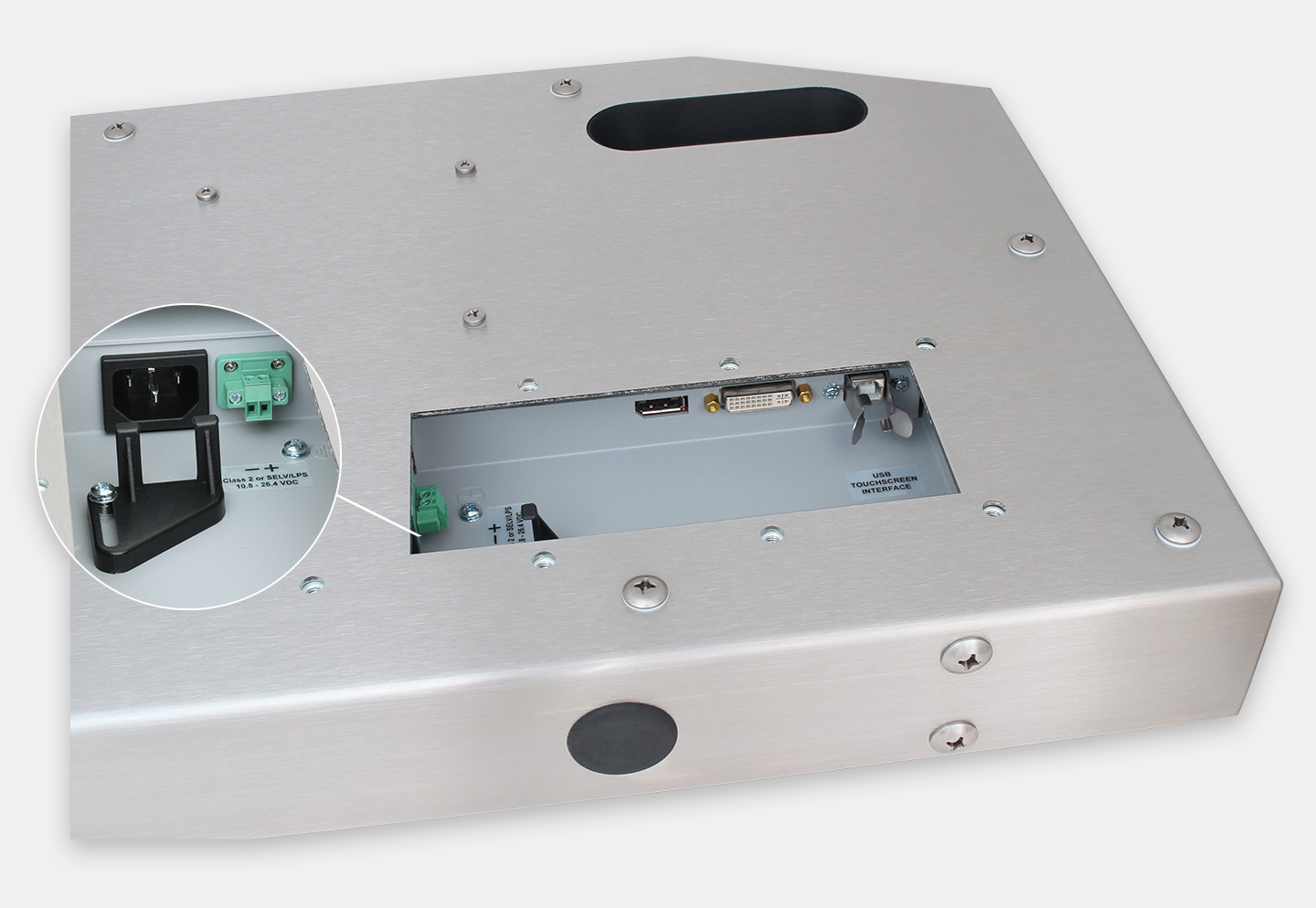

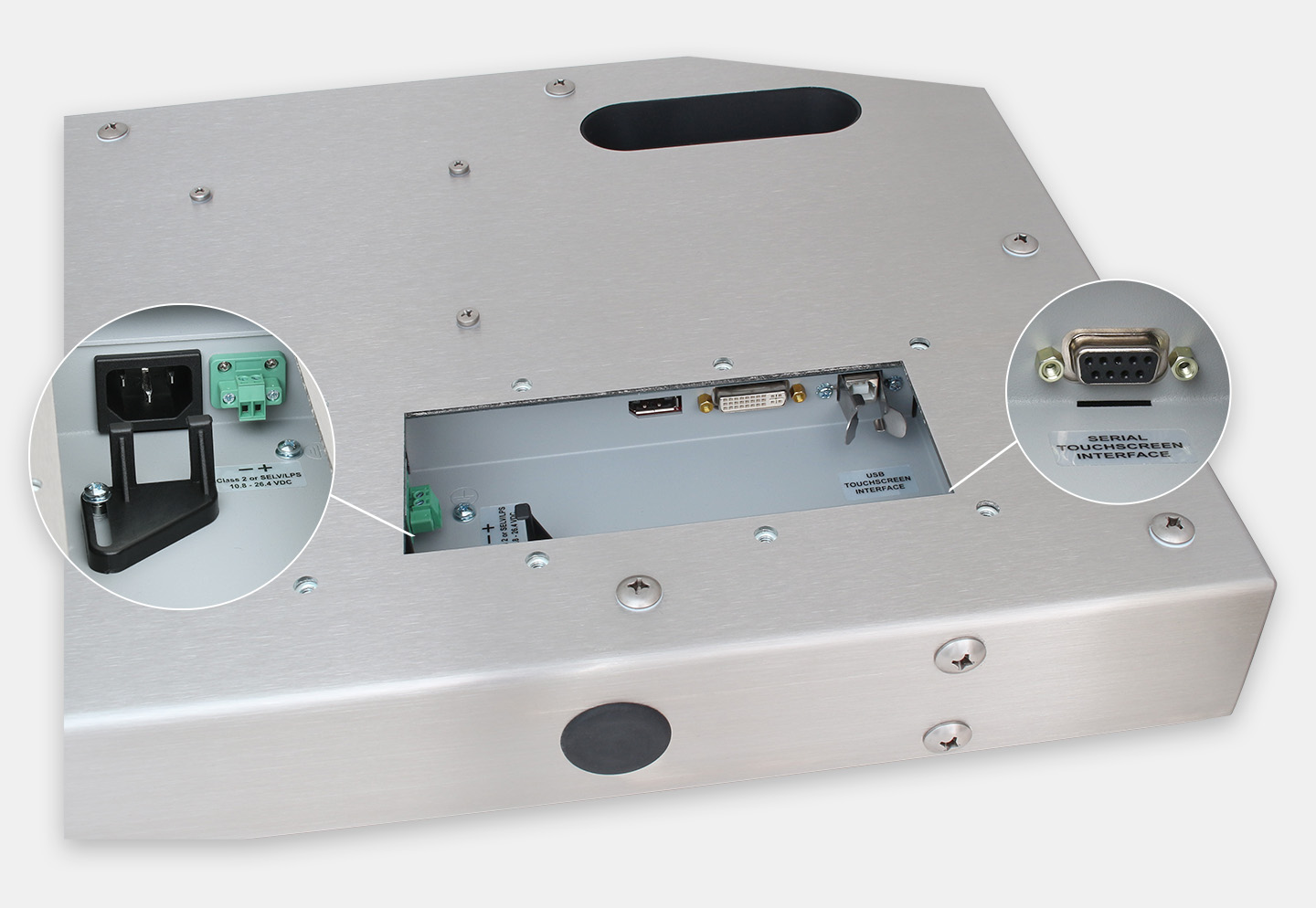

Cable Exit Options

Visit our Cable Exit Plate page for detailed specifications and available options.

Display

  • Type – Thin-film Transistor (TFT) Active Matrix Liquid Crystal
  • Size – 19.5″ diagonal (widescreen)
  • Image Size (W x H) – 434.88 mm x 238.68 mm (17.1″ x 9.4″)
  • Native Resolution – HD 1080p (1920 x 1080, 16:9 aspect ratio)
  • Plug and Play – DDC1/2B compatible
  • Minimum Resolution – VGA (640 x 480)
  • Pixel Pitch – 0.2265 mm x 0.221 mm
  • Number of Colors – 16.7 million
  • Brightness (white) – 250 nits (cd/m2) max
  • Viewing Angle (Hori/Vert), typical – 178° / 178°
  • Contrast Ratio – 3000:1
  • Backlight (typical) – LED; 50,000 hour brightness half-life
  • Fully Tempered Glass Window (non-touch screen) – fully tempered per ASTM C1048; 90 gloss front side anti-glare coating; heat strengthening provides improved safety and higher impact and scratch resistance
  • Optional Acrylic Window (non-touch screen) – acrylic glazing provides a scratch-resistant and shatter-resistant window; anti-reflective coating with 99% reduction of glare; thermal insulating and anti-static; 99% UV blocking

Video

  • Input Connectors – HD-15, DVI-D
  • Compatible Inputs Using Optional Adapter (call for details)
    • HDMI (via HDMI to DVI adapter)
    • DisplayPort (via DisplayPort to DVI adapter)
    • BNC (via HD-15 to 5-wire BNC adapter)
  • Input Signal Formats
    • RGB Analog video, 0.7/1.0 Vp-p, 75 Ohms; Compatible sync modes: Separate H/V sync
    • DVI
    • NTSC/PAL composite input available; call for details
  • Horizontal Scan – 24-82 kHz
  • Vertical Scan – 50-75 Hz
  • Supported Video Standards – HD 1080p – 1920 x 1080 @ 60 Hz (native); 1680 x 1050 @ 60 Hz; 1600 x 1200 @ 60 Hz; 1400 x 1050 @ 60 Hz; 1440 x 900 @ 60, 75 Hz; 1280 x 1024 @ 60, 75 Hz; 1280 x 960 @ 60 Hz; 1280 x 720 @ 60 Hz; 1152 x 870 @ 75 Hz; 1024 x 768 @ 60, 70, 75 Hz; 832 x 624 @ 75 Hz; 800 x 600 @ 56, 60, 72, 75 Hz; 720 x 400 @ 70 Hz; 640 x 480 @ 60, 67, 72, 75 Hz; see user manual for a full list of resolution and timing compatibility
  • Response Rate (typical) – 20 ms

Electrical

  • Power Input
    • AC Power Models – 100 to 240 VAC, 0.8/0.4 A, 60/50 Hz
    • DC Power Models – 9.6 to 36.6 VDC, 2.5 to 0.65 A, Class 2 or SELV/LPS
  • Power Consumption (typical) – 20 W
  • Power Consumption (standby mode) – < 1 W

Environmental

  • Enclosure Rating – NEMA 2, NEMA 4, or NEMA 4X when fitted with required cable exit plate; built to IP65/IP66 or IP22 standards (depending on cable exit). More on IP/NEMA ratings.
  • Operating Temperature – 0° to 50°C (32° to 122°F)
  • Storage Temperature – -20° to 60°C (-4° to 140°F)
  • Humidity – 20% to 90% non-condensing
  • Operating Shock – 15 g, 6 msec, half-sine
  • Operating Vibration (sine) – 1.0 g, swept sine 9-500 Hz
  • Transport Vibration (random) – 0.1g² / Hz, 10-200 Hz; 0.03g² / Hz, 200-2000 Hz
  • Altitude – Operating: up to 3.05 km (10,000′); Non-operating: up to 12.19 km (40,000′)

Functional

  • Panel Controls (rear access) – Power, 1 (Menu), Up, Down, 2 (Enter)
  • OSD (On Screen Display) Controls – Auto Image Adjust, Contrast / Brightness, Input Select, Audio Adjust, Color Adjust, Information, Manual Image Adjust, Setup, Memory Recall

Physical

  • Enclosure Type – self-contained enclosure
  • Enclosure Material – black powder-coated carbon steel or stainless steel enclosure
  • VESA Mounting Holes – standard on all models – 100mm square, M4 threads
  • Side Mounting Holes – standard on all models
  • Enclosure Dimensions (W x H x D) – 514.4 mm x 317.5 mm x 82.6 mm (20.25″ x 12.50″ x 3.25″)
  • Net Weight
    • Black Powder-Coated Carbon Steel Models – 6.80 kg (15 lbs.)
    • Stainless Steel Models – 8.62 kg (19 lbs.)
  • Shipping Weight
    • Black Powder-Coated Carbon Steel Models – 8.62 kg (19 lbs.)
    • Stainless Steel Models – 10.43 kg (23 lbs.)

Compliances and Certifications

  • Electrical
  • Reliability
  • Environmental
    • WEEE – Registration No. WEE/DJ1859ZX for UK only
  • Enclosure
  • Hazardous Locations
    • I.T.E. Listed for Class I, Division 2 for Groups A, B, C, and D; Class II, Division 2 for Groups F and G; Class III
    • Temp Code T4A (File No. E334953) per ANSI/ISA-12.12.01-2015 and CAN/CSA C22.2 No. 213-15
    • Note: Hope Industrial Systems provides wiring and conduit that complies with the U.S. National Electric Code but cannot rate wiring or conduit methods for hazardous locations, as these must be locally inspected and approved. The customer must install their hazardous location rated monitor in accordance with the applicable electrical codes for their location.

Touch Screen Option

  • Technology – 5-wire single-touch resistive system with mouse emulation
  • Interface – USB or RS-232 interface to computer (both connections are included on touch screen monitors)

Cable Exit Options

  • Compression Gland – cables exit through compressed polyurethane foam or EPDM rubber and may be repositioned by the user. NEMA 2, 12/4, or 12/4/4X (IP22 or IP65/IP66) options available.
  • 3/4″ Conduit – cables exit through flexible conduit. Up to 7.0 m (22′) conduit length. Sealed to NEMA 12/4 or 12/4/4X (IP65/IP66) standards.
  • Compression Gland with Conduit – cables exit through flexible conduit. Up to 7.0 m (22′) conduit length. Cables for nearby peripherals (mouse, keyboard, scanner) can exit through compressed EPDM rubber and may be repositioned by the user. Sealed to NEMA 12/4 or 12/4/4X (IP65/IP66) standards.
  • Cover Plate with Pilot Hole – NEMA 12/4 or 12/4/4X (IP65/IP66) rated cover plate with pilot hole for use with customer-supplied cable exit gland.

Optional Workstation Components

  • Mounts
  • Keyboards
  • KVM Extenders
    • 300 m KVM Extender – extends VGA video and either USB (2.0) or Serial/PS2 up to 300 m (1,000′) from the source over a single shielded CATx cable
    • 60 m KVM Extender – extends VGA video and USB (2.0) up to 60 m (198′) from the source over dual shielded CATx cables
  • Computer Enclosures
    • PC Enclosure – NEMA 4/4X, IP65/IP66-rated enclosure for standard-sized commercial or industrial PCs; mount to pedestal base or wall
    • Thin Client/Small PC Enclosure – NEMA 4/4X, IP65/IP66-rated enclosure for compact PCs and Thin Clients; mount to pedestal base or wall
19.5" Universal Mount Monitors - pricing below is for monitor only. Base configuration pricing above includes monitor, basic cover plate, and 6' cables.
Enclosure MaterialPower InputWindow OptionPart NumberPrice
Stainless SteelACResistive Touch ScreenHIS-UM19.5-STAA$1,170£1,000€1,1551.155 €
Glass (non-touch)HIS-UM19.5-SGAA$1,050£905€1,0451.045 €
Acrylic (non-touch)HIS-UM19.5-SAAA$1,080£930€1,0751.075 €
DCResistive Touch ScreenHIS-UM19.5-STTA$1,275£1,085€1,2501.250 €
Glass (non-touch)HIS-UM19.5-SGTA$1,155£990€1,1401.140 €
Acrylic (non-touch)HIS-UM19.5-SATA$1,185£1,015€1,1701.170 €
Black Powder-Coated Carbon SteelACResistive Touch ScreenHIS-UM19.5-CTBA$970£845€975975 €
Glass (non-touch)HIS-UM19.5-CGBA$850£750€865865 €
Acrylic (non-touch)HIS-UM19.5-CABA$880£775€890890 €
DCResistive Touch ScreenHIS-UM19.5-CTTA$1,075£925€1,0701.070 €
Glass (non-touch)HIS-UM19.5-CGTA$955£830€960960 €
Acrylic (non-touch)HIS-UM19.5-CATA$985£855€985985 €
