Usage Limitations and Restrictions

  • Environmental Restrictions – for use in dry environments only; use in wet environments can allow liquid to become trapped behind protective film
  • Cutting / Resizing – may not be cut or resized; adhesive is only applied at edges
  • Compatible Touch Screens
    • Intended for use on Hope Industrial Systems touch screens
    • May be used on some 3rd-party touch screens provided they have a matte (non-shiny) surface
    • Not compatible with non-projected capacitive or SAW (surface acoustic wave) touch screens; may not be compatible with other non-resistive touch technologies

Physical

  • Material – 7-mil (0.007″) polyester
  • Surface Coating – anti-glare acrylic hard coat on front side
  • Adhesive – 3.2 mm (1/8″) strip of low tack adhesive on rear perimeter
  • Size (W x H)
    • 12″ – 246.4 mm x 184.9 mm (9.70″ x 7.28″)
    • 15″ – 304.8 mm x 228.6 mm (12.00″ x 9.00″)
    • 17″ – 339.1 mm x 271.3 mm (13.35″ x 10.68″)
    • 19″ – 379.0 mm x 303.5 mm (14.92″ x 11.95″)
    • 19.5″ – 238.8 mm x 435.6 mm (9.40″ x 17.15″)
    • 20″ – 407.2 mm x 305.6 mm (16.03″ x 12.03″)
    • 22″ – 472.4 mm x 294.6 mm (18.60″ x 11.60″)
    • 23″ – 511.8 mm x 288.3 mm (20.15″ x 11.35″)

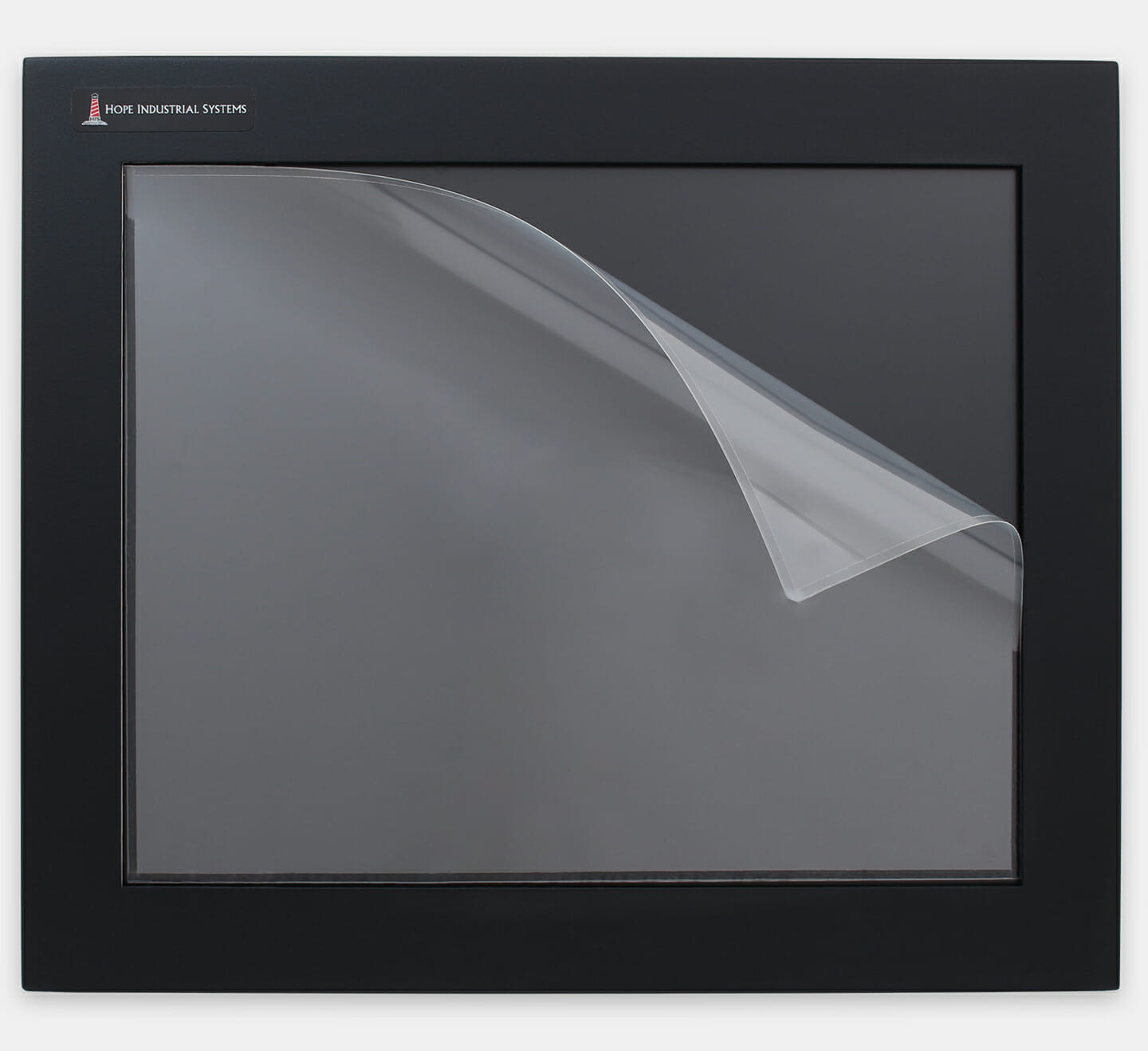

Industrial Screen Protectors
Monitor SizePart NumberPrice (qty 1)Price (qty 10)
12"SP-12$15£12€1313 €$135
15"SP-15$15£12€1313 €$135
17"SP-17$15£12€1313 €$135
19"SP-19$15£12€1313 €$135
19.5"SP-19.5$15£12€1313 €$135
20"SP-20$15£12€1313 €$135
22"SP-22$15£12€1313 €$135
23"SP-23$15£12€1313 €$135
