Support Items

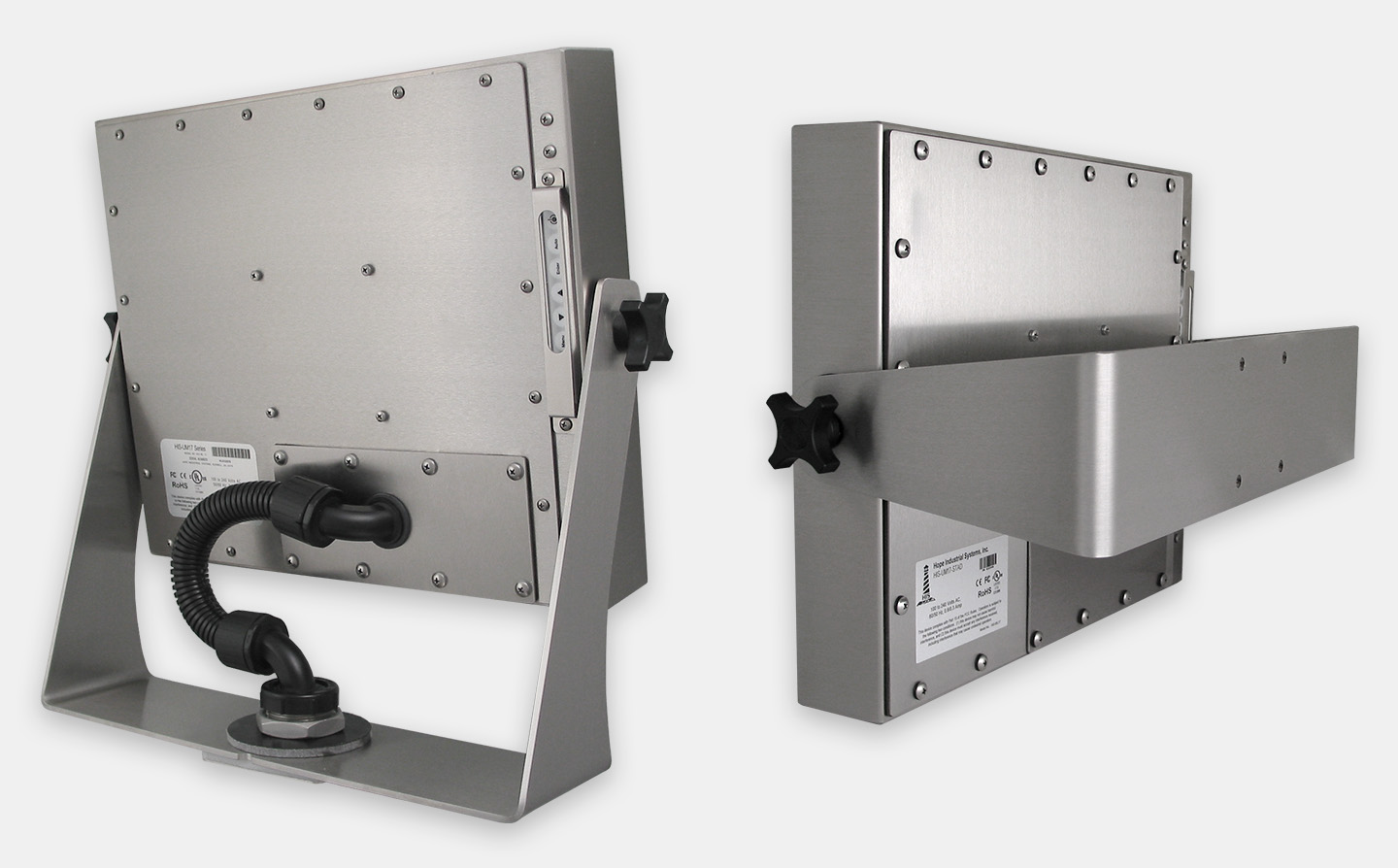

Heavy Industrial Yoke Mounts (YB and YK models)

  • Material – 304 stainless or black powder-coated carbon steel
  • Swivel Rotation Limit (with optional Benchtop Mounting Kit) – 640°
  • Mounting Pattern (with optional Benchtop Mounting Kit, W x H) – 82.6 mm x 82.6 mm (3.25″ x 3.25″)
  • Mounting Bolts – four M6 screws or bolts
  • NEMA Rating – cable seal to mounting surface

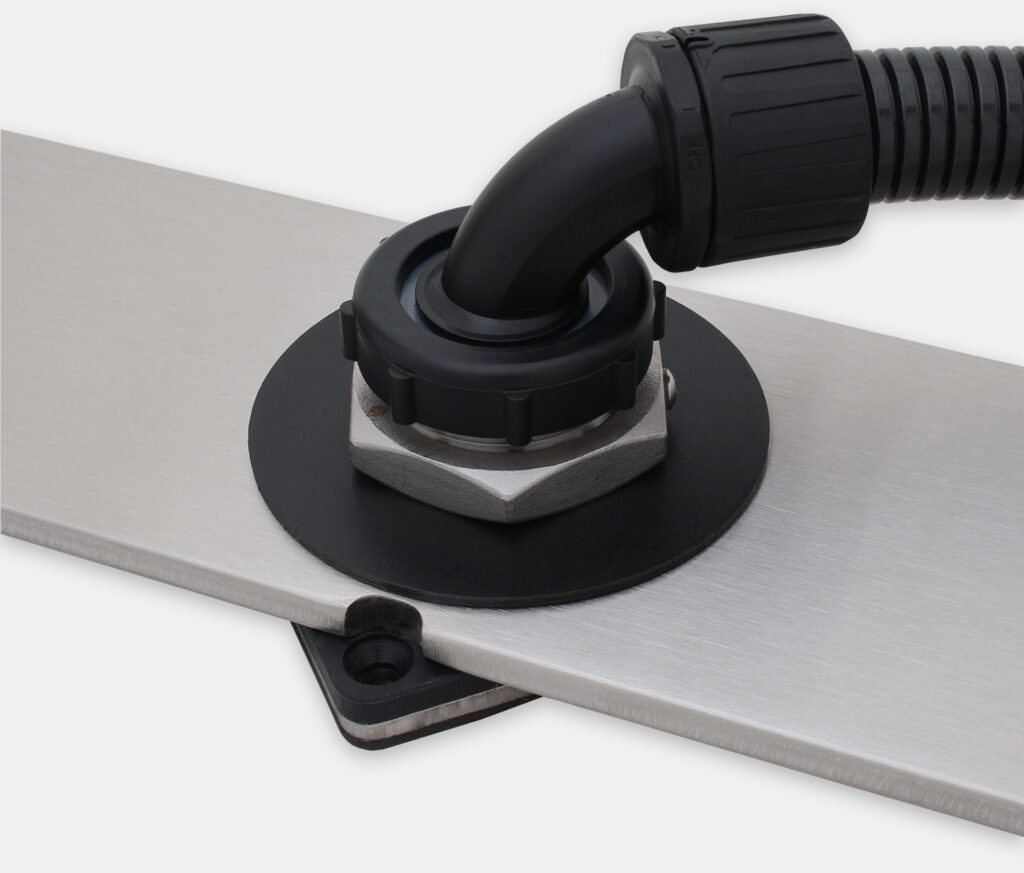

    • With NEMA 4/4X Benchtop Mounting Kit
      • Stainless Steel Models – sealed to NEMA 12/4/4X, IP65/IP66 standards for full wash-down environments
      • Black Carbon Steel Models – sealed to NEMA 12/4, IP65/IP66 standards for full wash-down environments

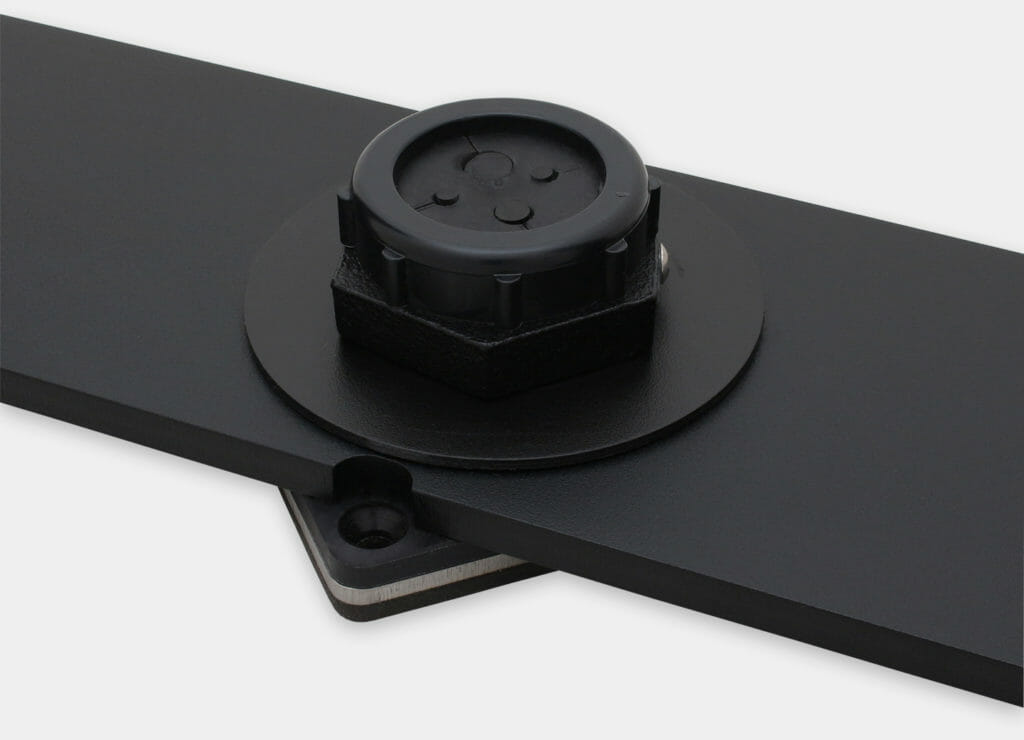

    • With NEMA 1/NEMA 12 Benchtop Mounting Kit – sealed to NEMA 12, IP54 standards when sealed with RTV, otherwise meets NEMA 1, IP20 standards
    • Without Benchtop Mounting Kit – not applicable; no provisions for passing cables through mounting surface. NEMA-rating of display is maintained.
  • Weight (without Benchtop Mounting Kit)
    • 15″, 17″ Monitors – 8.6 kg (18.9 lbs.)
    • 19″, 22″ Monitors – 9.8 kg (21.6 lbs.)
    • 19.5″ Monitors – 9.1 kg (20.1 lbs.)
    • 23″ Monitors – 10.4 kg (23.0 lbs.)
  • Weight (with Benchtop Mounting Kit)
    • 15″, 17″ Monitors – 8.9 kg (19.7 lbs.)
    • 19″, 19.5″ Monitors – 10.1 kg (22.1 lbs.)
    • 22″ Monitors – 10.7 kg (23.6 lbs.)
    • 23″ Monitors – 11.6 kg (25.5 lbs.)

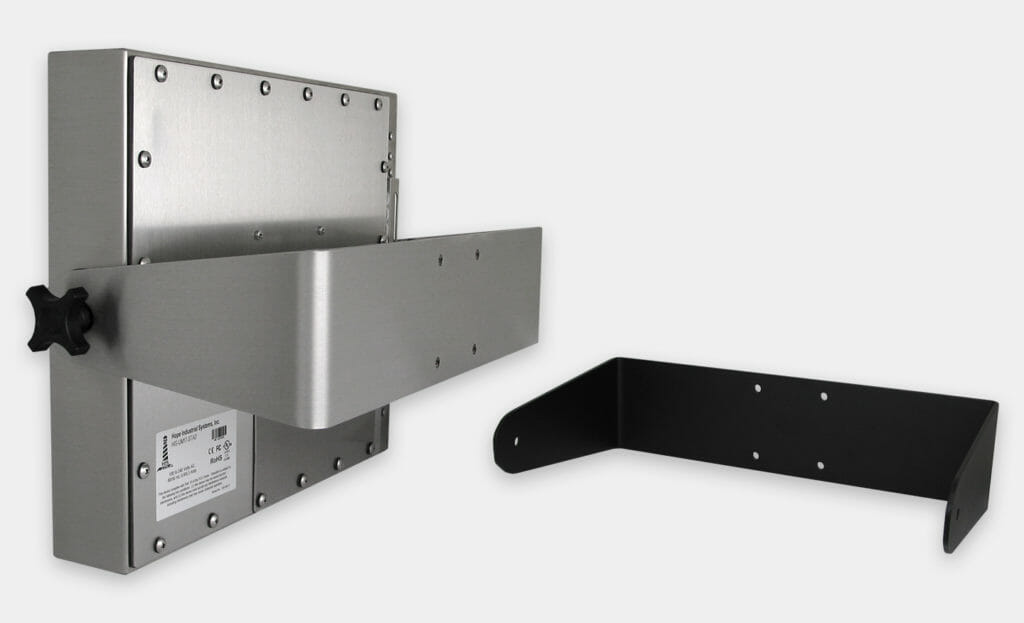

Heavy Industrial Wall Yoke Mounts (YW models)

  • Material – 304 stainless or black powder-coated carbon steel
  • NEMA Rating – NEMA-rating of display is maintained
  • Extension from Wall – at 0° tilt
    • 15″, 17″ Monitors – 218.5 mm (8.60″)
    • 19″ Monitors – 231.1 mm (9.10″)
    • 19.5″ Monitors – 218.4 mm (8.60″)
    • 22″, 23″ Monitors – 224.8 (8.85″)
  • Display Vertical Tilt Range
    • 15″, 17″ Monitors – up 60°, down 30°
    • 19″ Monitors – up 45°, down 30°
    • 19.5″ Monitors – up 90°, down 30°
    • 22″, 23″ Monitors – up 64°, down 37°
  • Weight
    • 15″, 17″ Monitors – 3.8 kg (8.4 lbs.)
    • 19″ Monitors – 4.1 kg (9.1 lbs.)
    • 19.5″ Monitors – 4.3 kg (9.4 lbs.)
    • 22″, 23″ Monitors – 4.7 kg (10.5 lbs.)
  • Inner Mounting Pattern (W x H) – 75.0 mm x 75.0 mm (2.95″ x 2.95″)
  • Outer Mounting Pattern (W x H)
    • 15″, 17″ Monitors – 350.0 mm x 75.0 mm (13.78″ x 2.95″)
    • 19″ Monitors – 400.0 mm x 75.0 mm (15.75″ x 2.95″)
    • 19.5″ Monitors – 450.0 mm x 75.0 mm (17.72″ x 2.95″)
    • 22″ Monitors – 500.0 mm x 75.0 mm (19.68″ x 2.95″)
    • 23″ Monitors – 550.0 mm x 75.0 mm (21.65″ x 2.95″)
  • Mounting Bolts – four M7 screws or bolts

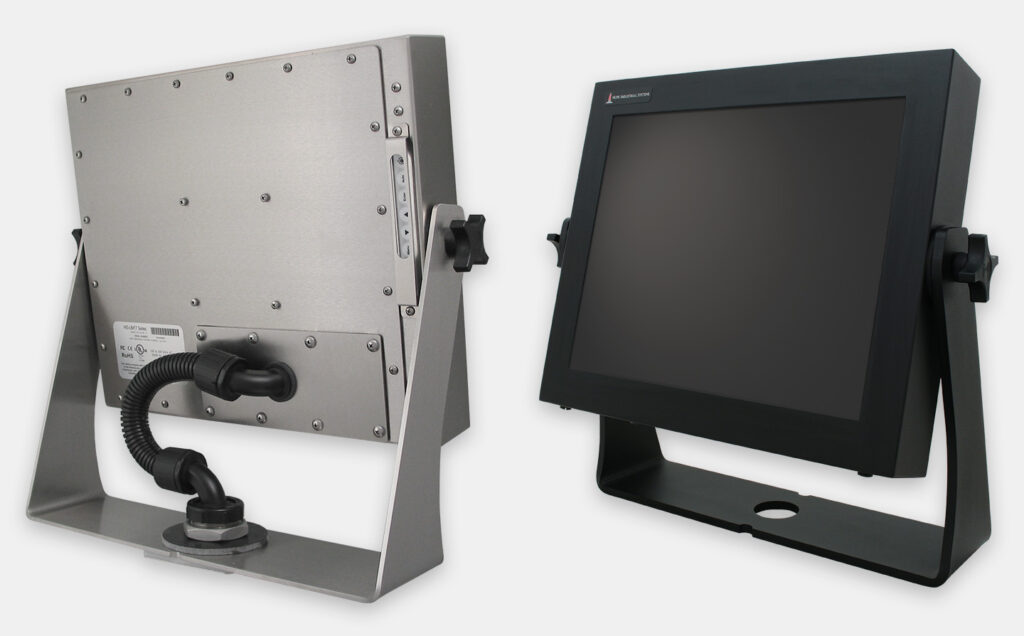

Heavy Industrial Yoke Mounts with Benchtop Mounting Kit
Monitor SizeMaterialNEMA/IP RatingPart NumberPrice
15"/17"Stainless SteelNEMA 4X, IP65/IP66YB1517-SS-N4X$395£345€390390 €
Black Powder-Coated Carbon SteelNEMA 4, IP65/IP66YB1517-BLK-N4$260£245€275275 €
NEMA 1/NEMA 12, IP20/IP54YB1517-BLK-N12$270£250€285285 €
19"Stainless SteelNEMA 4X, IP65/IP66YB19-SS-N4X$410£360€410410 €
Black Powder-Coated Carbon SteelNEMA 4, IP65/IP66YB19-BLK-N4$270£260€290290 €
NEMA 1/NEMA 12, IP20/IP54YB19-BLK-N12$280£265€300300 €
19.5"Stainless SteelNEMA 4X, IP65/IP66YB19.5-SS-N4X$430£375€425425 €
Black Powder-Coated Carbon SteelNEMA 4, IP65/IP66YB19.5-BLK-N4$280£265€300300 €
NEMA 1/NEMA 12, IP20/IP54YB19.5-BLK-N12$290£275€310310 €
22"Stainless SteelNEMA 4X, IP65/IP66YB22-SS-N4X$440£385€440440 €
Black Powder-Coated Carbon SteelNEMA 4, IP65/IP66YB22-BLK-N4$280£265€305305 €
NEMA 1/NEMA 12, IP20/IP54YB22-BLK-N12$290£275€310310 €
23"Stainless SteelNEMA 4X, IP65/IP66YB23-SS-N4X$445£395€445445 €
Black Powder-Coated Carbon SteelNEMA 4, IP65/IP66YB23-BLK-N4$285£275€310310 €
NEMA 1/NEMA 12, IP20/IP54YB23-BLK-N12$295£280€320320 €
Heavy Industrial Yoke Mounts without Benchtop Mounting Kit
Monitor SizeMaterialPart NumberPrice
15"/17"Stainless SteelYK1517-SS$290£265€300300 €
Black Powder-Coated Carbon SteelYK1517-BLK$155£165€185185 €
19"Stainless SteelYK19-SS$300£280€315315 €
Black Powder-Coated Carbon SteelYK19-BLK$165£175€200200 €
19.5"Stainless SteelYK19.5-SS$325£295€335335 €
Black Powder-Coated Carbon SteelYK19.5-BLK$175£185€210210 €
22"Stainless SteelYK22-SS$335£305€345345 €
Black Powder-Coated Carbon SteelYK22-BLK$170£180€205205 €
23"Stainless SteelYK23-SS$340£310€355355 €
Black Powder-Coated Carbon SteelYK23-BLK$175£190€215215 €
Heavy Industrial Wall Yoke Mounts
Monitor SizeMaterialPart NumberPrice
15"/17"Stainless SteelYW1517-07-SS4$190£175€200200 €
Black Powder-Coated Carbon SteelYW1517-07-BLK$125£125€145145 €
19"Stainless SteelYW19-07-SS4$220£200€230230 €
Black Powder-Coated Carbon SteelYW19-07-BLK$115£125€140140 €
19.5"Stainless SteelYW19.5-07-SS4$210£195€220220 €
Black Powder-Coated Carbon SteelYW19.5-07-BLK$125£130€145145 €
22"Stainless SteelYW22-07-SS4$180£175€200200 €
Black Powder-Coated Carbon SteelYW22-07-BLK$135£140€160160 €
23"Stainless SteelYW23-07-SS4$190£180€200200 €
Black Powder-Coated Carbon SteelYW23-07-BLK$115£125€140140 €
