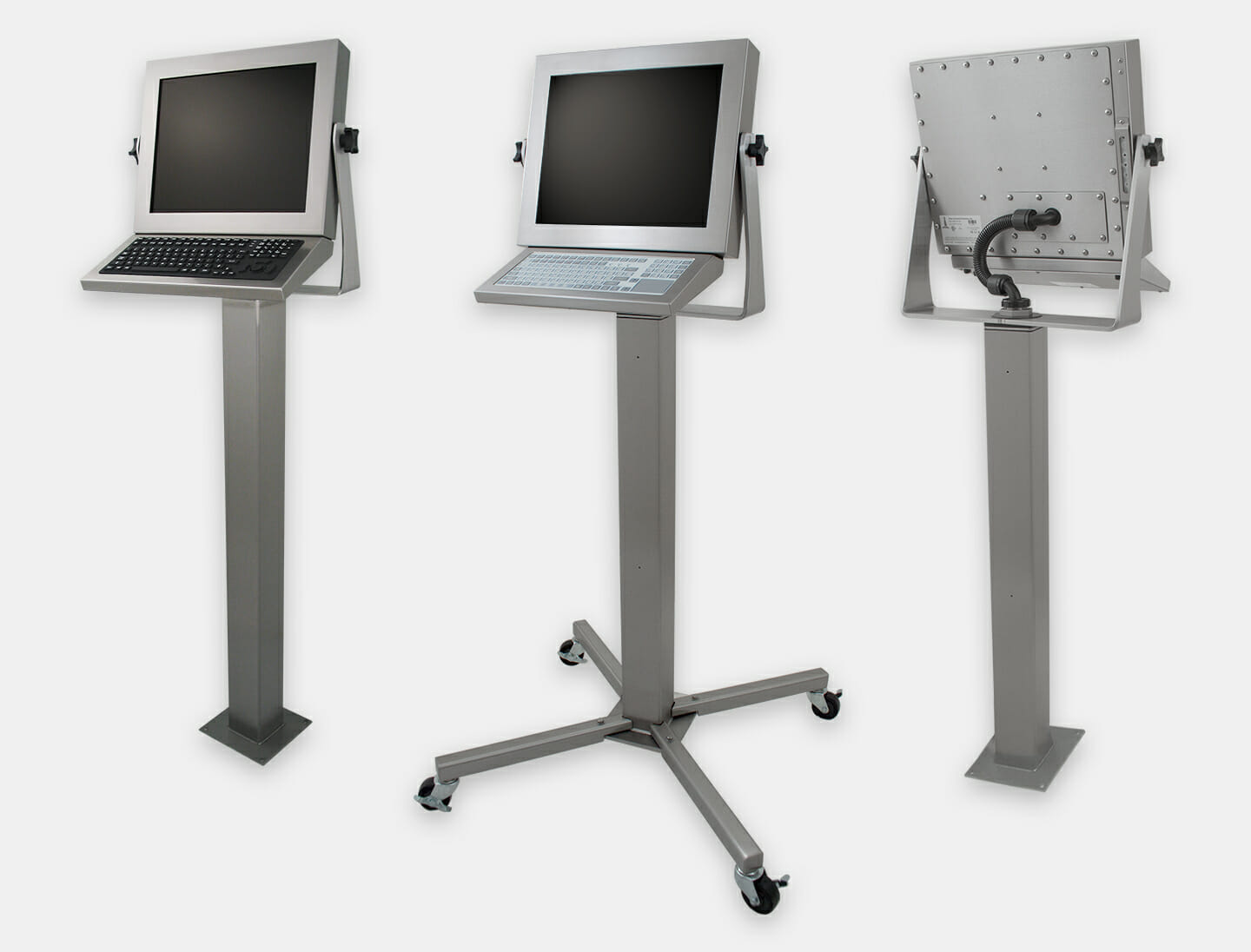

Our Heavy Industrial Monitor Pedestal Mounts allow a Universal Mount Monitor to be used anywhere on the factory floor, creating a full stand-alone workstation. The yoke allows full range of pan and tilt motion for an adjustable display angle. Each mount is available with free-standing floor stands (both wheeled and fixed).

  • Available in both non-sealed and sealed configurations
    • Non-sealed configurations route cables from the display and through a rubber seal on the head of the pedestal and are available in NEMA 1 or NEMA 12 (when sealed with RTV or equivalent)
    • Sealed configurations use flexible conduit to route the cables from the display to the head of the pedestal and are NEMA 4/4X rated
  • Available in 3 different mounting styles:

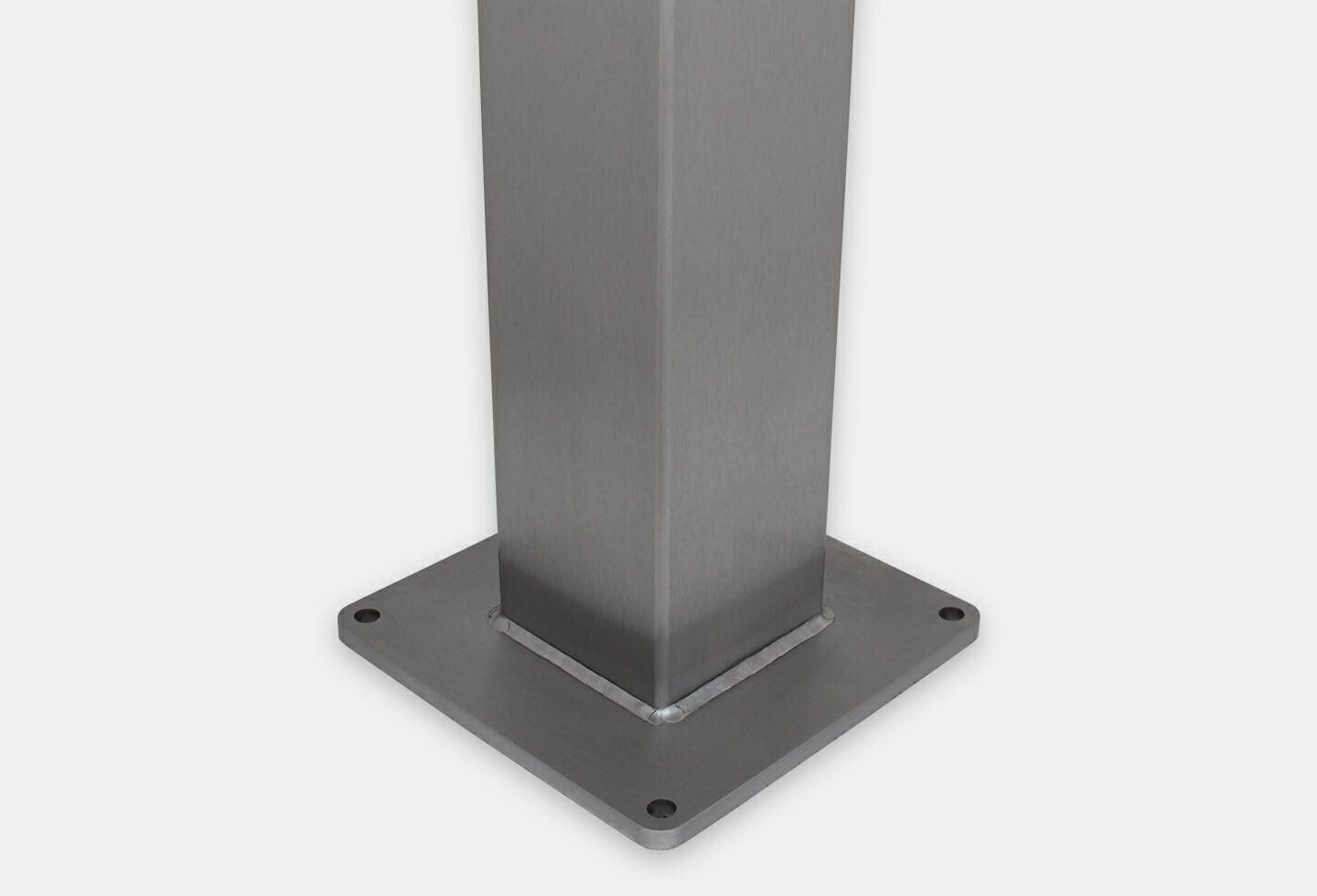

    • Direct attachment to floor

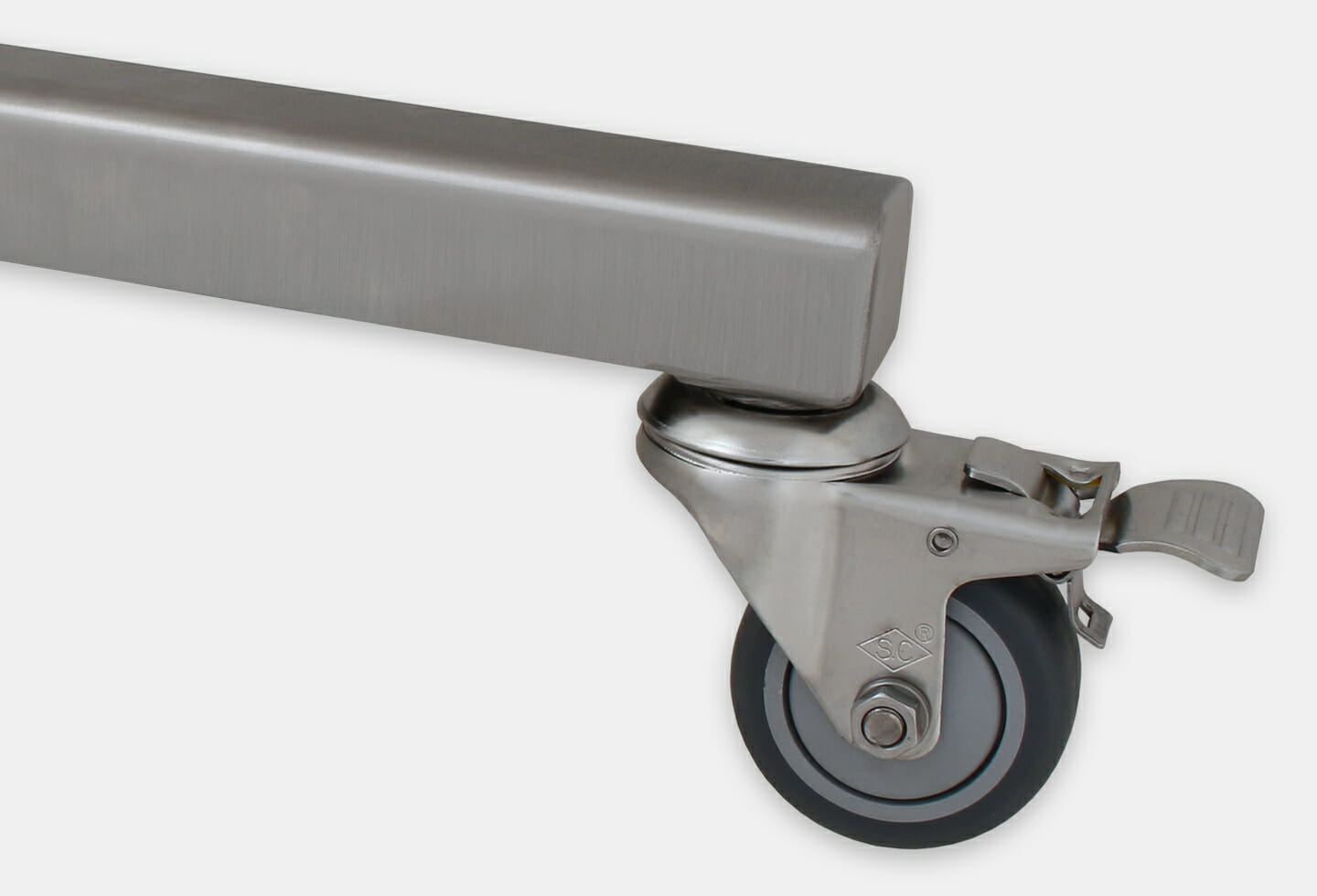

    • Optional floor stand with locking casters

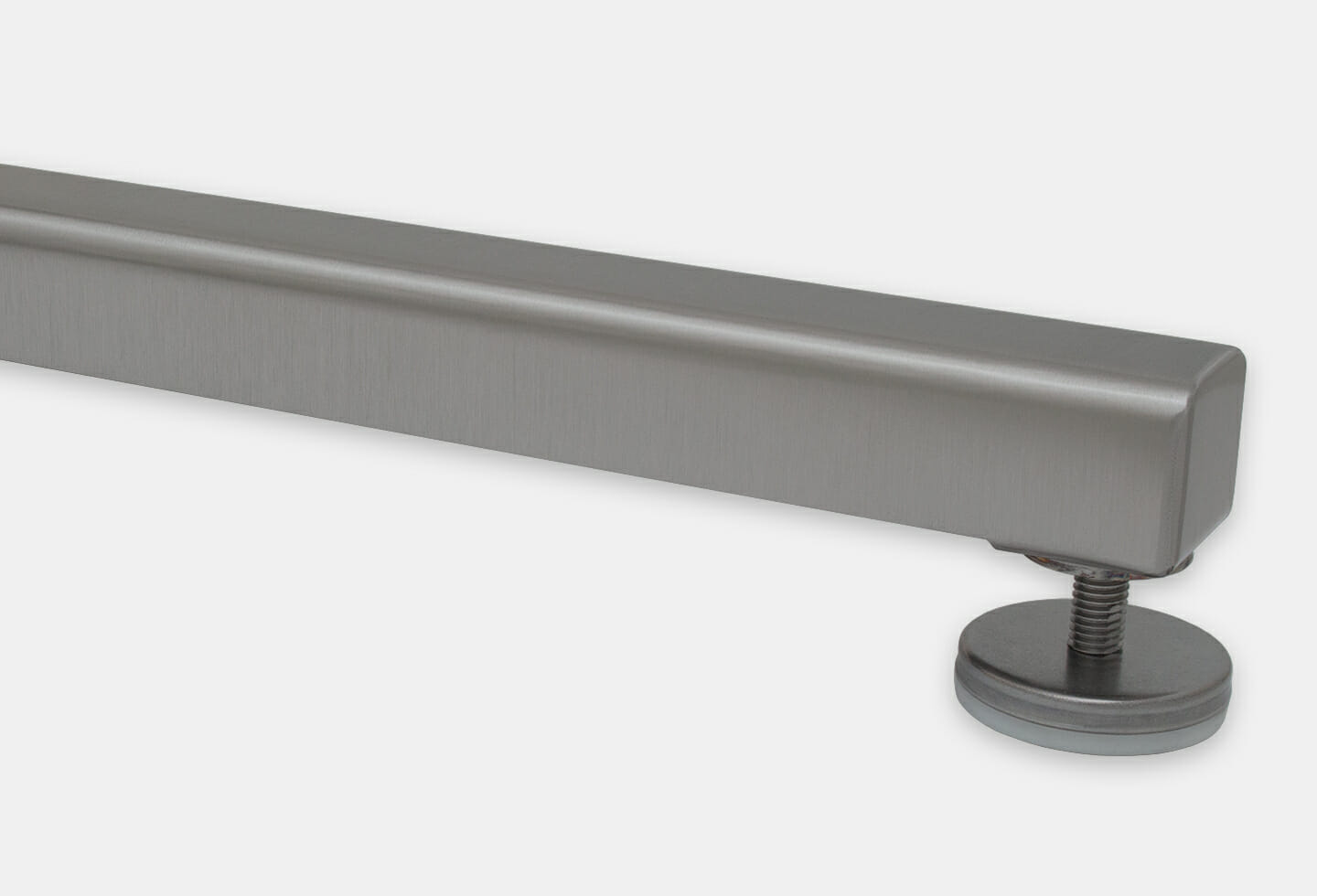

    • Optional floor stand with leveling feet

Physical and Environmental

  • Material – stainless or black powder-coated carbon steel, 101.6 mm (4″) square, 3.175 mm (1/8″) tube wall thickness
  • Height – 1 m (40″)
  • Floor Mounting Bracket – 10 mm (3/8″) thick steel
  • Mounting Pattern (W x H) – 178 mm x 178 mm (7.00″ x 7.00″)
  • NEMA Rating Note – when using the Yoke and Pedestal with floor stand options, note that powerful hose-directed water pointed at the pedestal base compromises the NEMA Type 12/4/4X seal of the monitor if cables are run through the pedestal. Consult Hope Industrial Systems if this is a potential issue.
  • Hazardous Location Rating Note – for installations in Class II or III hazardous locations, cables may not be routed through the pedestal base
Heavy Industrial Pedestal Mounts with Yoke Mounting Kit
Monitor SizeMaterialNEMA/IP RatingEnclosure Mounting HolesPart NumbersPrice
15"/17"Stainless SteelNEMA 4X, IP65/IP66NoPED4X4-SS-40
YB1517-SS-N4X
$520£475€550550 €
$390£360€415415 €
YesPED4X4-SS-40-H4
YB1517-SS-N4X
$520£475€550550 €
$390£360€415415 €
Black Powder-Coated Carbon SteelNEMA 4, IP65/IP66NoPED4X4-BLK-40
YB1517-BLK-N4
$260£270€315315 €
$290£280€325325 €
YesPED4X4-BLK-40-H4
YB1517-BLK-N4
$260£270€315315 €
$290£280€325325 €
NEMA 1/NEMA 12, IP20/IP54NoPED4X4-BLK-40
YB1517-BLK-N12
$260£270€315315 €
$300£290€335335 €
YesPED4X4-BLK-40-H4
YB1517-BLK-N12
$260£270€315315 €
$300£290€335335 €
19"Stainless SteelNEMA 4X, IP65/IP66NoPED4X4-SS-40
YB19-SS-N4X
$520£475€550550 €
$400£375€430430 €
YesPED4X4-SS-40-H4
YB19-SS-N4X
$520£475€550550 €
$400£375€430430 €
Black Powder-Coated Carbon SteelNEMA 4, IP65/IP66NoPED4X4-BLK-40
YB19-BLK-N4
$260£270€315315 €
$300£295€340340 €
YesPED4X4-BLK-40-H4
YB19-BLK-N4
$260£270€315315 €
$300£295€340340 €
NEMA 1/NEMA 12, IP20/IP54NoPED4X4-BLK-40
YB19-BLK-N12
$260£270€315315 €
$310£305€350350 €
YesPED4X4-BLK-40-H4
YB19-BLK-N12
$260£270€315315 €
$310£305€350350 €
19.5"Stainless SteelNEMA 4X, IP65/IP66NoPED4X4-SS-40
YB19.5-SS-N4X
$520£475€550550 €
$450£415€475475 €
YesPED4X4-SS-40-H4
YB19.5-SS-N4X
$520£475€550550 €
$450£415€475475 €
Black Powder-Coated Carbon SteelNEMA 4, IP65/IP66NoPED4X4-BLK-40
YB19.5-BLK-N4
$260£270€315315 €
$310£305€350350 €
YesPED4X4-BLK-40-H4
YB19.5-BLK-N4
$260£270€315315 €
$310£305€350350 €
NEMA 1/NEMA 12, IP20/IP54NoPED4X4-BLK-40
YB19.5-BLK-N12
$260£270€315315 €
$320£310€360360 €
YesPED4X4-BLK-40-H4
YB19.5-BLK-N12
$260£270€315315 €
$320£310€360360 €
22"Stainless SteelNEMA 4X, IP65/IP66NoPED4X4-SS-40
YB22-SS-N4X
$520£475€550550 €
$480£440€505505 €
YesPED4X4-SS-40-H4
YB22-SS-N4X
$520£475€550550 €
$480£440€505505 €
Black Powder-Coated Carbon SteelNEMA 4, IP65/IP66NoPED4X4-BLK-40
YB22-BLK-N4
$260£270€315315 €
$315£310€355355 €
YesPED4X4-BLK-40-H4
YB22-BLK-N4
$260£270€315315 €
$315£310€355355 €
NEMA 1/NEMA 12, IP20/IP54NoPED4X4-BLK-40
YB22-BLK-N12
$260£270€315315 €
$325£315€365365 €
YesPED4X4-BLK-40-H4
YB22-BLK-N12
$260£270€315315 €
$325£315€365365 €
23"Stainless SteelNEMA 4X, IP65/IP66NoPED4X4-SS-40
YB23-SS-N4X
$520£475€550550 €
$480£445€510510 €
YesPED4X4-SS-40-H4
YB23-SS-N4X
$520£475€550550 €
$480£445€510510 €
Black Powder-Coated Carbon SteelNEMA 4, IP65/IP66NoPED4X4-BLK-40
YB23-BLK-N4
$260£270€315315 €
$320£315€365365 €
YesPED4X4-BLK-40-H4
YB23-BLK-N4
$260£270€315315 €
$320£315€365365 €
NEMA 1/NEMA 12, IP20/IP54NoPED4X4-BLK-40
YB23-BLK-N12
$260£270€315315 €
$330£325€375375 €
YesPED4X4-BLK-40-H4
YB23-BLK-N12
$260£270€315315 €
$330£325€375375 €
Optional Floor Stands - to be used with a Pedestal configuration above
Mounting StyleMaterialPart NumberPrice
Floor Stand with Locking CastersStainless SteelMOBL4X4-CSTR-SS$935£805€930930 €
Black Powder-Coated Carbon SteelMOBL4X4-CSTR-BLK$665£595€685685 €
Floor Stand with Leveling FeetStainless SteelMOBL4X4-FIXD-SS$860£745€860860 €
Black Powder-Coated Carbon SteelMOBL4X4-FIXD-BLK$675£600€695695 €
