Display

  • Type – Thin-film Transistor (TFT) Active Matrix Liquid Crystal
  • Size – 19.0″ diagonal
  • Image Size (W x H) – 374.8 mm x 299.8 mm (14.8″ x 11.8″)
  • Native Resolution – SXGA (1280 x 1024, 5:4 aspect ratio)
  • Plug and Play – DDC1/2B compatible
  • Minimum Resolution – VGA (640 x 480)
  • Pixel Pitch – 0.293 mm x 0.293 mm
  • Number of Colors – 16.7 million
  • Brightness (white) – 250 nits (cd/m2) max
  • Viewing Angle (Hori/Vert), typical – 178° / 178°
  • Contrast Ratio – 1000:1 (static); 20,000,000:1 (dynamic)
  • Backlight (typical) – LED; 40,000 hour brightness half-life
  • Tempered Glass Window (non-touch screen) – chemically tempered glass; AR coated
  • Optional Acrylic Window (non-touch screen) – acrylic glazing provides a scratch-resistant and shatter-resistant window; anti-reflective coating with 99% reduction of glare; thermal insulating and anti-static; 99% UV blocking

Video

  • Input Connectors – HD-15, DVI-D
  • Compatible Inputs Using Optional Adapter (call for details)
    • HDMI (via HDMI to DVI adapter)
    • DisplayPort (via DisplayPort to DVI adapter)
    • BNC (via HD-15 to 5-wire BNC adapter)
  • Input Signal Formats
    • RGB Analog video, 0.7/1.0 Vp-p, 75 Ohms; Compatible sync modes: Separate H/V sync, Composite sync, Sync on Green
    • DVI
    • NTSC/PAL composite input available; call for details
  • Horizontal Scan – 24-82 kHz
  • Vertical Scan – 50-75 Hz
  • Supported Video Standards – SXGA – 1280 x 1024 @ 60 (native), 75 Hz; 1280 x 960 @ 60, 75 Hz; 1024 x 768 @ 60, 70, 75 Hz; 800 x 600 @ 56, 60, 72, 75 Hz; 720 x 400 @ 70 Hz; 640 x 480 @ 60, 75 Hz; see user manual for a full list of resolution and timing compatibility
  • Response Rate (typical) – 14 ms

Electrical

  • Power Input
    • AC Power Models – 100 to 240 VAC, 1.5/0.75 A, 60/50 Hz
    • DC Power Models – 9.6 to 36.6 VDC, 2.5 to 0.65 A, Class 2 or SELV/LPS
  • Power Consumption (typical) – 16 W
  • Power Consumption (standby mode) – < 0.5 W

Environmental

  • Panel Rating (with proper installation)
    • Black Powder-Coated Carbon Steel Models – NEMA/UL Type 12/4; built to IP65/IP66 standards
    • Stainless Steel Models – NEMA/UL Type 12/4/4X; built to IP65/IP66 standards
    • More on IP / NEMA ratings
  • Operating Temperature – 0° to 50°C (32° to 122°F)
  • Storage Temperature – -20° to 60°C (-4° to 140°F)
  • Humidity – 20% to 90% non-condensing
  • Operating Shock – 15 g, 6 msec, half-sine
  • Operating Vibration (sine) – 1.0 g, swept sine 9-500 Hz
  • Transport Vibration (random) – 0.1g² / Hz, 10-200 Hz; 0.03g² / Hz, 200-2000 Hz
  • Altitude – Operating: up to 3.05 km (10,000′); Non-operating: up to 12.19 km (40,000′)
  • Environmental Sulfur Gas Protection Option – includes glass-armored touch screen, vapor-phase corrosion inhibitor, and extensive sealing; call for details. More on Sulfur Gas Protection.

Functional

  • Panel Controls (rear access) – 1 (Menu), 2 (Enter), Down, Up, Power
  • OSD (On Screen Display) Controls – Auto Image Adjust, Contrast / Brightness, Input Select, Color Adjust, Information, Manual Image Adjust, Setup, Memory Recall

Physical

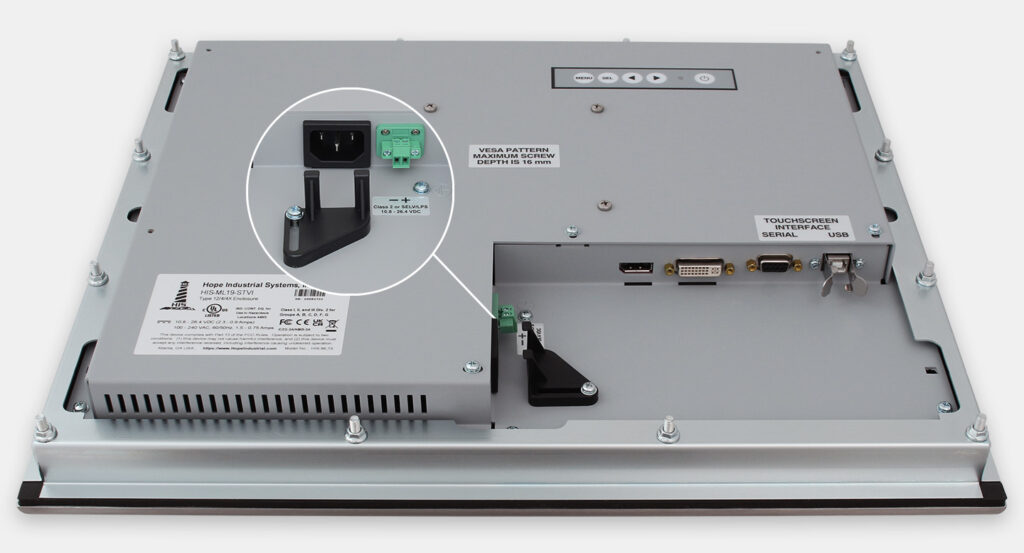

  • Enclosure Type – panel mount; rear collar compresses gasket against panel; held by 12 M5 studs
  • Maximum Panel Thickness – 7.9 mm (5/16″)
  • Bezel Material – black powder-coated carbon steel or stainless steel faceplate
  • VESA Mount Holes – available using adapter, see Accessory Mounting Bracket Option below
  • Maximum Depth Behind Panel – 53.8 mm (2.12″)
  • Front Bezel Outside Dimensions (W x H x D) – 482.6 mm x 398.8 mm x 7.1 mm (19.00″ x 15.70″ x 0.28″) (not including gasket)
  • Cutout Dimensions (W x H) – 453.4 mm x 366.8 mm (17.85″ x 14.44″); +/- 0.5 mm (0.020″)
  • Net Weight – 8.16 kg (18 lbs.)
  • Shipping Weight – 9.98 kg (22 lbs.)

Compliances and Certifications

Touch Screen Option

  • Technology – 5-wire single-touch resistive system with mouse emulation
  • Interface – USB or RS-232 interface to computer (both connections are included on touch screen monitors)

Accessory Mounting Bracket Option

Accessory Mounting Bracket for 19" Panel Mount Monitors, with VESA Mounting Pattern

  • VESA Mounting Pattern – provides 100 mm and 75 mm VESA mounting holes for mounting devices to rear of the display, or for mounting display to a stand; note that the 19″ Panel Mount Display does not have a VESA mounting pattern without using this bracket
  • Custom Mounting Surface – can be drilled to mount other custom devices without drilling into rear of display
  • Attachment to Display – mounts to display via mounting holes on outer edges of bracket
  • Weight Limit – up to 11.3 kg (25 lbs.)
  • Physical
    • Bracket Dimensions (W x H x D) – 381.0 mm x 127.0 mm x 12.7 mm (15.00″ x 5.00″ x 0.50″)
    • Panel Space for Mounting Devices (W x H) – 381.0 mm x 127.0 mm (15.00″ x 5.00″)
    • Total Display Depth (including bracket) – 67.2 mm (2.65″)
    • Construction – 16-gauge aluminum
19" Industrial Panel Mount Monitors and Touch Screens
Bezel MaterialPower InputWindow OptionPart NumberPrice
Stainless SteelACResistive Touch ScreenHIS-ML19-STAH$880£755€855855 €
Glass (non-touch)HIS-ML19-SGAH$795£690€785785 €
Acrylic (non-touch)HIS-ML19-SAAH$810£705€800800 €
DCResistive Touch ScreenHIS-ML19-STTH$1,015£855€970970 €
Glass (non-touch)HIS-ML19-SGTH$920£785€890890 €
Acrylic (non-touch)HIS-ML19-SATH$940£800€910910 €
Black Powder-Coated Carbon SteelACResistive Touch ScreenHIS-ML19-CTBH$880£755€855855 €
Glass (non-touch)HIS-ML19-CGBH$795£690€785785 €
Acrylic (non-touch)HIS-ML19-CABH$810£705€800800 €
DCResistive Touch ScreenHIS-ML19-CTTH$1,010£855€965965 €
Glass (non-touch)HIS-ML19-CGTH$920£785€890890 €
Acrylic (non-touch)HIS-ML19-CATH$940£800€910910 €
Accessory Mounting Bracket Option
Part NumberPrice
VB-19E$55£80€9090 €
Industrial Monitor Comparison Chart - 19" Panel Mount Monitor

Products X and Y are actual products sold by leaders in the industrial market. Pricing and specifications were obtained from their web sites on October 18, 2018. These offerings are similar to other companies.

Hope Industrial 19" Panel Mount MonitorProduct XProduct Y
Price - Base Unit$795£690€785785 €$1,555n/a
Price - Touch Screen Unit$880£755€855855 €$1,755$1,350
Price - Stainless Steel (add)$0n/a$350
Panel RatingNEMA 4/4X/12NEMA 4/4X/12NEMA 4/4X/12
Operating Temperature0° to 50°C0° to 50°C0° to 40°C
Operating Shock15 g15 gnot listed
Operating Vibration1.0 g1.0 gnot listed
Backlight Brightness half-life (hours)40,00050,000not listed
Brightness (nits)250270250
Contrast Ratio1000:12000:11000:1
Horizontal Viewing Angle (degrees)178°178°170°
Vertical Viewing Angle (degrees)178°178°160°
Bezel Dimensions19.0" x 15.7"18.66" x 15.7"21.0" x 17.5"
Cutout Size17.85" x 14.44"17.75" x 14.9"19.5" x 16.0"
Depth2.12"2.85"2.56"
Mounting MethodSingle Heavy Duty BracketClips12 Studs
Number of holes to cut in panel1113
Touch ScreenAnalog ResistiveAnalog ResistiveAnalog Resistive or Capacitive
Warranty3 years2 years2 years
