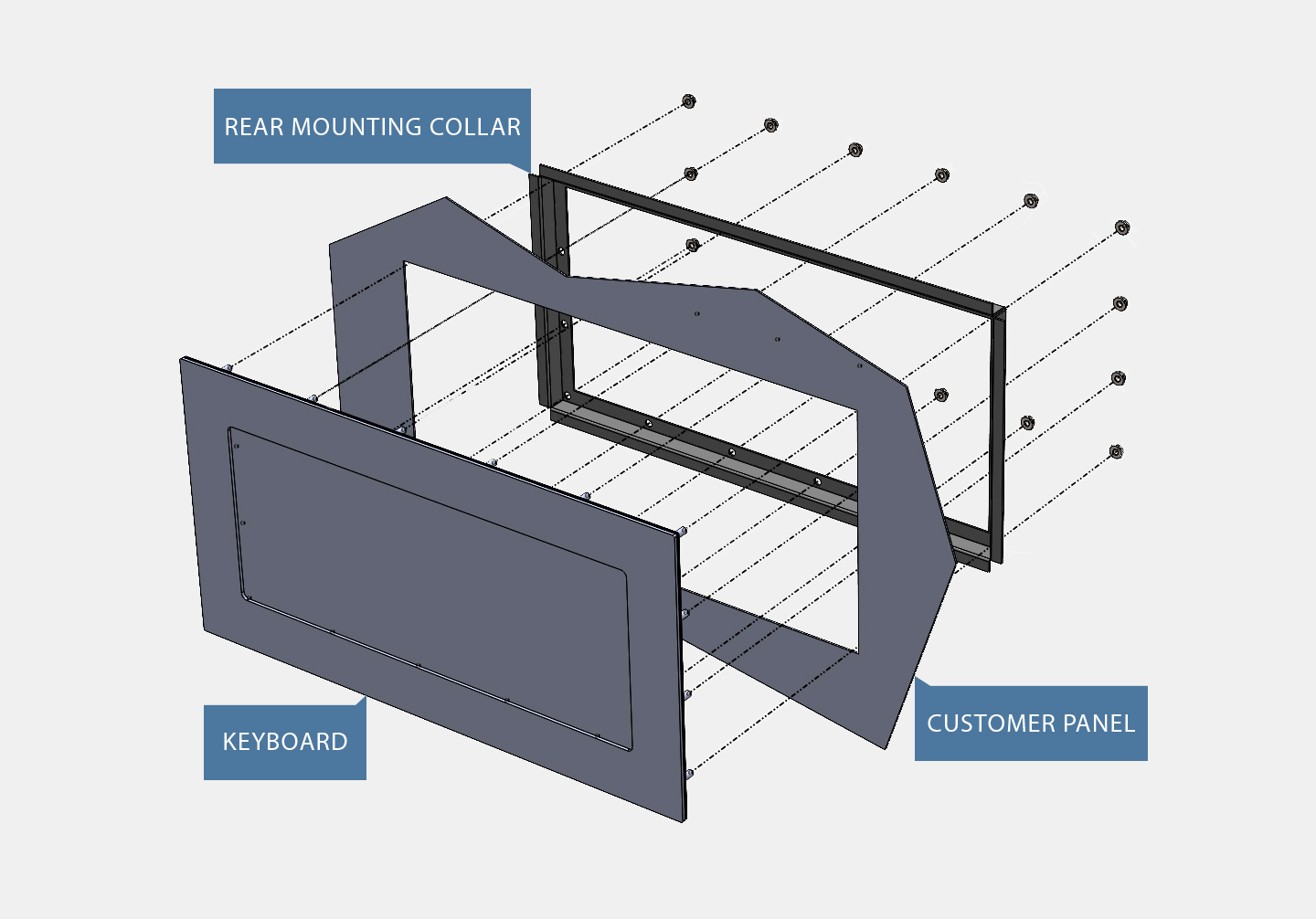

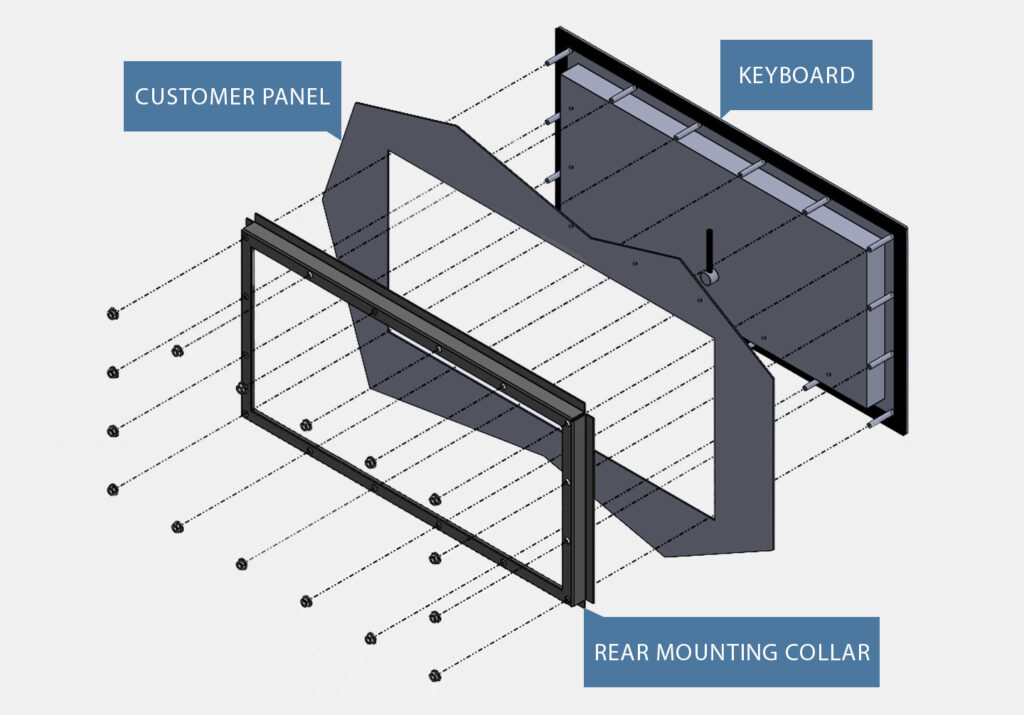

Our Industrial Panel Mount Keyboards are designed to mount in a single cutout in any enclosure or panel and use the same proven NEMA 4X, IP65/IP66 seal as our line of Panel Mount Monitors, which combines a continuous gasket and a rear mounting collar to apply even pressure to the mounting surface without the need for individual stud holes or mounting clips.
Each keyboard is built with a rugged stainless steel bezel and a choice of three keypad options:
Full-Travel Keypad with Touchpad – durable silicone overlay protects full-travel keys for easy touch-typing while maintaining wash-down NEMA 4X rating. Familiar capacitive touchpad pointer can be used with thin gloves.
Full-Travel Keypad with Button Pointer – durable silicone overlay protects full-travel keys for easy touch-typing while maintaining wash-down NEMA 4X rating. Button pointer can be used with any type of gloves and is unaffected by standing water or debris.
Short-Travel Keypad with Touchpad – durable polyester membrane resists chemicals and scratching, and provides a flat, easy-to-clean surface that does not trap dirt. Fully wash-down NEMA 4X certified. Familiar capacitive touchpad pointer can be used with thin gloves.

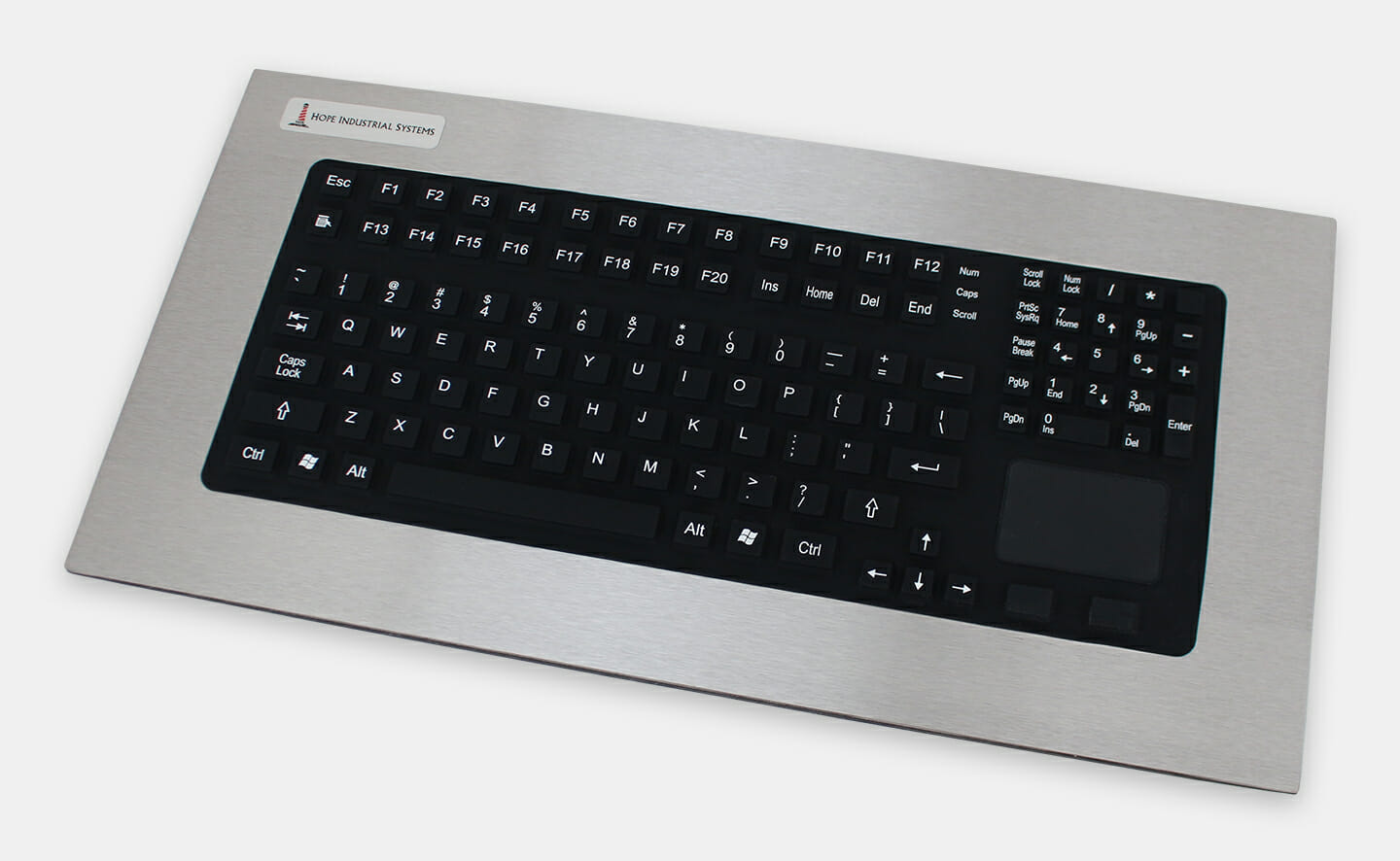

Full-Travel Keypad
with Touchpad

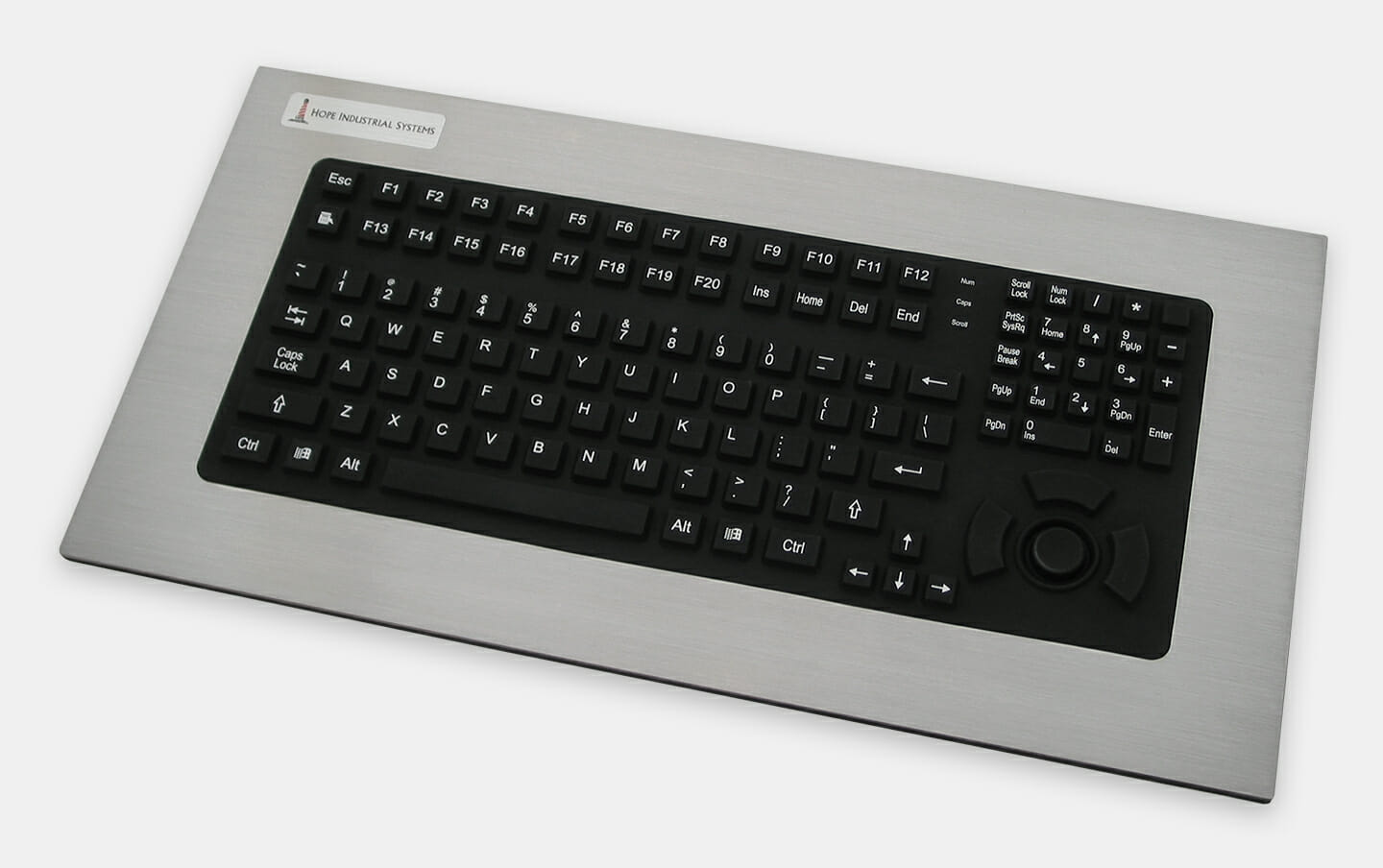

Full-Travel Keypad
with Button Pointer

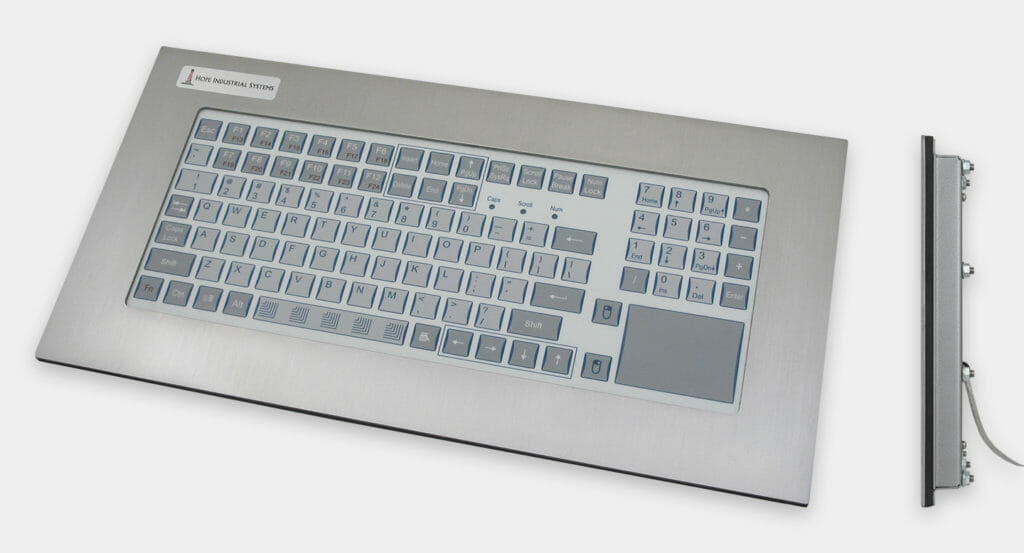

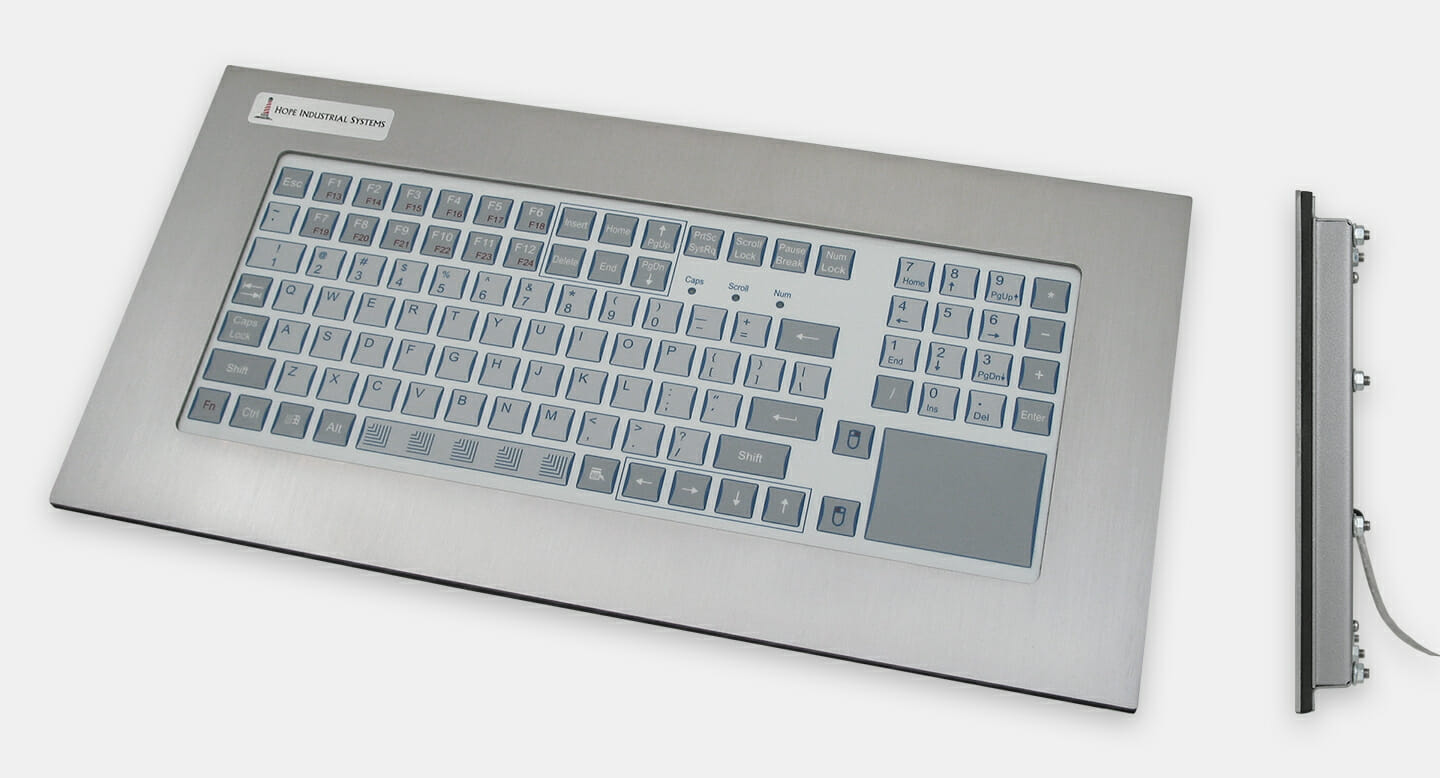

Short-Travel Keypad
with Touchpad
Full-Travel Panel Mount Keyboards with Touchpad (KB-R3-P90 models)
Keypad
Keys – 113-key functionality with numeric keypad and 20 function keys
Overlay – silicone overlay with long-travel keys
Key Material – industrial silicone rubber
Key Switch Force / Travel – 0.45 lb. (2.0 N) / 2.5 mm (0.098″)
Key Switch Life – 10 million cycles
Computer Connection
Connection – single USB type A
Cable Length – 4.6 m (15′)
Capacitive Touchpad
Resolution – 40 counts / mm
Use with Gloves – compatible with thin gloves; for heavy gloves see our Button Pointer models
Use with Standing Water – while touchpad is designed for use in wet environments, standing water on the touchpad can diminish pointer accuracy. Once water is wiped away, normal accuracy is instantly restored.
Environmental
NEMA Rating – sealed to NEMA 4X, IP65/IP66 standards for harsh, industrial environments, 3rd-party certified
Operating Temperature – -20° to 60°C (-4° to 140°F)
Storage Temperature – -40° to 70°C (-40° to 158°F)
Humidity – 20% to 90% non-condensing
Physical
Dimensions (W x H) – 444.5 mm x 228.6 mm (17.50″ x 9.00″)
Cutout Dimensions (W x H) – 416.1 mm x 200.7 mm (16.38″ x 7.90″)
Depth Behind Front of Panel – 30.9 mm (1.21″) maximum
Hazardous Locations – Rated I.T.E. for Class I, II, III, Division 2 for Groups A, B, C, D, F, G; Temp Code T5 (file No. E334953) per ANSI/ISA-12.12.01-2015 and CAN/CSA C22.2 No. 213-15
Full-Travel Panel Mount Keyboards with Button Pointer (KB-R2-P90 models)
Keypad
Keys – 113-key functionality with numeric keypad and 20 function keys
Overlay – silicone overlay with long-travel keys
Key Material – industrial silicone rubber
Key Switch Force / Travel – 0.45 lb. (2.0 N) / 2.5 mm (0.098″)
Key Switch Life – 10 million cycles
Computer Connection
Connection – single USB type A
Cable Length – 4.6 m (15′)
Button Pointer
Technology – Hall effect sensor
Use with Gloves – compatible with all gloves
Environmental
NEMA Rating – sealed to NEMA 4X, IP65/IP66 standards for harsh, industrial environments, 3rd-party certified
Operating Temperature – -20° to 60°C (-4° to 140°F)
Storage Temperature – -40° to 70°C (-40° to 158°F)
Humidity – 20% to 90% non-condensing
Physical
Dimensions (W x H) – 444.5 mm x 228.6 mm (17.50″ x 9.00″)
Cutout Dimensions (W x H) – 416.1 mm x 200.7 mm (16.38″ x 7.90″)
Depth Behind Front of Panel – 30.9 mm (1.21″) maximum
Hazardous Locations – Rated I.T.E. for Class I, II, III, Division 2 for Groups A, B, C, D, F, G; Temp Code T5 (file No. E334953) per ANSI/ISA-12.12.01-2015 and CAN/CSA C22.2 No. 213-15
Short-Travel Panel Mount Keyboards with Touchpad (KB-M2-P90 models)
Keypad
Keys – 102-key functionality with numeric keypad and 24 function keys
Overlay – polyester membrane with short-travel keys; chemical, abrasion, and scratch resistant
Key Switch Force / Travel – 0.59 lb. (2.6 N) / 0.3 mm (0.012″)
Key Switch Life – 3 million cycles
Computer Connection
Connection – single USB type A
Cable Length – 4.6 m (15′)
Capacitive Touchpad
Dimensions (W x H) – 65 mm x 49 mm (2.56″ x 1.94″)
Resolution – 40 counts / mm
Use with Gloves – compatible with thin gloves; for heavy gloves see our Button Pointer models
Use with Standing Water – while touchpad is designed for use in wet environments, standing water on the touchpad can diminish pointer accuracy. Once water is wiped away, normal accuracy is instantly restored.
Environmental
NEMA Rating – sealed to NEMA 4X, IP65/IP66 standards for harsh, industrial environments, 3rd-party certified
Operating Temperature – -20° to 60°C (-4° to 140°F)
Storage Temperature – -40° to 90°C (-40° to 194°F)
Humidity – 20% to 90% non-condensing
Physical
Dimensions (W x H) – 444.5 mm x 228.6 mm (17.50″ x 9.00″)
Cutout Dimensions (W x H) – 416.1 mm x 200.7 mm (16.38″ x 7.90″)
Depth Behind Front of Panel – 30.9 mm (1.21″) maximum
Hazardous Locations – Rated I.T.E. for Class I, II, III, Division 2 for Groups A, B, C, D, F, G; Temp Code T5 (file No. E334953) per ANSI/ISA-12.12.01-2015 and CAN/CSA C22.2 No. 213-15
