Display

  • Size – 23.8″ diagonal (widescreen)
  • Native Resolution – HD 1080p (1920 x 1080, 16:9 aspect ratio)
  • Brightness (white) – 350 nits (cd/m2) max
  • Contrast Ratio – 1000:1
  • Backlight (typical) – LED; 40,000 hour brightness half-life
  • Type – Thin-film Transistor (TFT) Active Matrix Liquid Crystal
  • Image Size (W x H) – 527.04 mm x 296.46 mm (20.75″ x 11.67″)
  • Plug and Play – DDC1/2Bi compatible
  • Minimum Resolution – VGA (640 x 480)
  • Pixel Pitch – 0.2745 mm x 0.2745 mm
  • Number of Colors – 16.7 million
  • Viewing Angle (Hori/Vert), typical – 178° / 178°

Window Options

  • Single-Touch Resistive Touch Screen
    • Technology – 5-wire single-touch resistive sensor. Pressure sensitive for use with any stylus or glove. Polyester cover sheet with anti-glare acrylic hard-coat. Single-touch gestures supported.
    • Interface – USB or RS-232 interface to computer (both connections included); USB cable included
    • If the touch screen will be exposed to sunlight, whether direct or indirect, please choose our glass-armored resistive or PCAP touch solutions that will not lose clarity over time as a result of UV rays; call for details.
  • Multi-Touch PCAP Touch Screen
    • Technology – high-clarity projected capacitive sensor. Can be used with thin gloves or capacitive stylus. Chemically-strengthened glass with anti-glare finish. 10-point multi-touch gestures supported.
    • Interface – USB interface to computer; cable included
  • Glass Window (non-touch) – 2.8 mm to 3.0 mm glass window with 90% gloss anti-glare surface finish. Chemically-strengthened for higher impact and scratch resistance. Passes ball-drop test, 500 g at 2.0 m (6.6′).
  • Food Protection Window (non-touch) – glass with polyester cover sheet and anti-glare acrylic hard-coat

Video

  • Input Connectors – DVI-I; DisplayPort
  • Compatible Inputs Using Optional Adapter (call for details)
    • HDMI (via HDMI to DVI adapter); part number: ADAP-DVID-HDMIF
    • Mini DisplayPort (via Mini DisplayPort to DisplayPort adapter); part number: ADAP-DPM-MDPF
    • VGA (via included VGA to DVI adapter); part number: CVGA-DVI
    • BNC (via 5-wire BNC to HD-15 adapter); part number: C20A
  • Input Signal Formats
    • RGB Analog video, 0.7/1.0 Vp-p, 75 Ohms; Compatible sync modes: Separate H/V sync, Composite sync, Sync on Green
    • DVI
    • DisplayPort 1.1
    • NTSC/PAL composite input available; call for details
  • Horizontal Scan – 24-82 kHz
  • Vertical Scan – 50-75 Hz
  • Common Supported Video Standards
    • HD 1080p – 1920 x 1080 @ 60 Hz (native)
    • 1680 x 1050 @ 60 Hz
    • 1600 x 1200 @ 60 Hz
    • 1440 x 900 @ 60, 75 Hz
    • 1280 x 1024 @ 60, 75 Hz
    • 1024 x 768 @ 60, 70, 72, 75 Hz
    • 800 x 600 @ 56, 60, 75 Hz
    • 720 x 480 @ 60 Hz
    • 640 x 480 @ 50, 75 Hz
    • See user manual for a full list of resolution and timing compatibility
  • Response Time (typical) – 14 ms

Electrical

  • Power Input

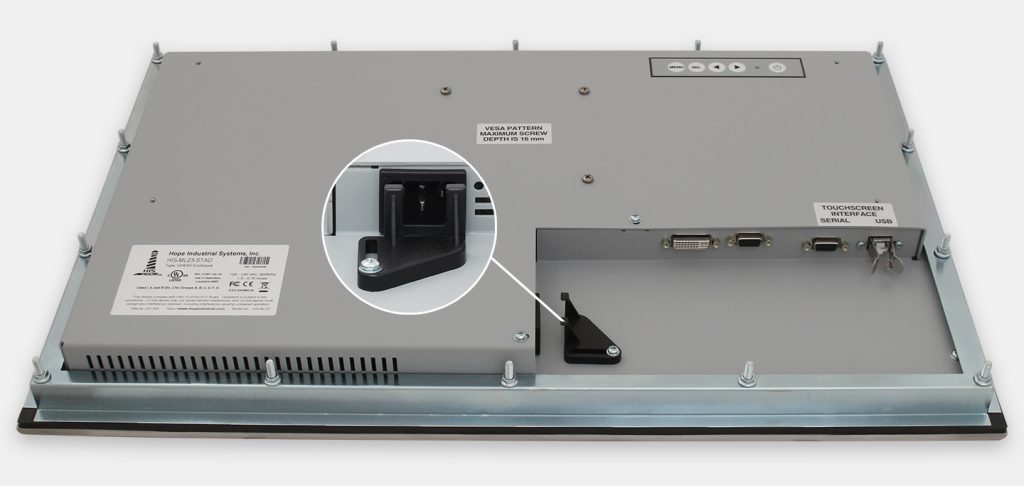

    • AC Power Input – 100 to 240 VAC, 0.6/0.3 A, 60/50 Hz; AC power cable included

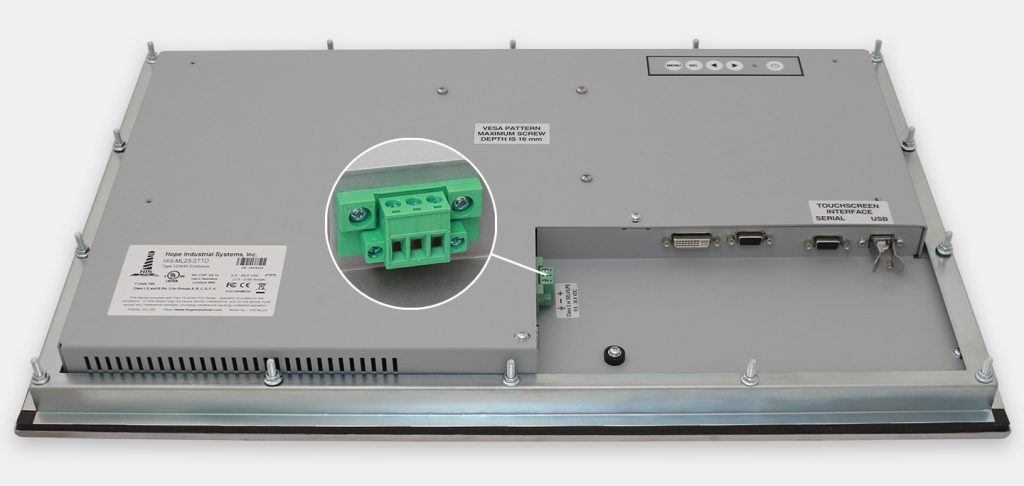

    • DC Power Input – 10.8 to 26.4 VDC, 2.3 to 0.9 A, Class 2 or SELV/LPS
  • Power Consumption (typical) – 27 W
  • Power Consumption (standby mode) – < 2 W

Environmental

  • Panel Rating (with proper installation) – NEMA/UL Type 12/4/4X; IP65/IP66/IP69/IP69K
  • Operating Temperature – 0° to 50°C (32° to 122°F)
  • Storage Temperature – -20° to 60°C (-4° to 140°F)
  • Humidity – 20% to 90% non-condensing
  • Operating Shock – 15 g, 6 msec, half-sine
  • Operating Vibration (sine) – 1.0 g, swept sine 9-500 Hz
  • Transport Vibration (random) – 0.1g² / Hz, 10-200 Hz; 0.03g² / Hz, 200-2000 Hz
  • Altitude – Operating: up to 3.05 km (10,000′); Non-operating: up to 12.19 km (40,000′)

Functional

  • Panel Controls (rear access) – Menu, SEL, Left, Right, Power
  • OSD (On Screen Display) Controls – Contrast, Brightness, Sharpness, Color, Timing, Auto setup, H total, V position, H position, Phase, Inputs, OSD, Info, Reset to factory defaults, Source scan, Advanced Setup

Physical

  • Enclosure Type – panel mount; rear collar compresses gasket against panel; held by 10 M5 studs
  • Maximum Panel Thickness – 7.9 mm (5/16″)
  • Bezel Material – edge-to-edge window with black edge molding made of 60D durometer urethane creates an IP69K seal and eliminates collection of solids by its seamless integration with the front surface of the display

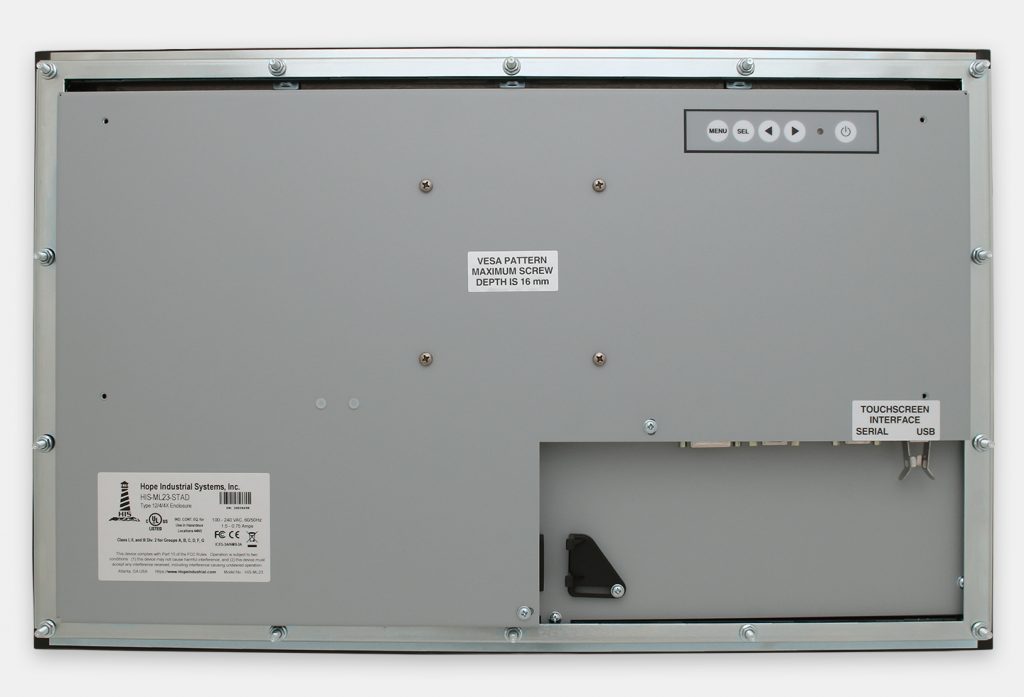

  • VESA Mount Holes – standard 100 mm VESA mounting holes, M4 threads (hardware included)
  • Maximum Depth Behind Front Edge of Panel – 46.1 mm (1.81″)
  • Front Bezel Outside Dimensions (W x H x D) – 596.8 mm x 376.6 mm x 8.9 mm (23.50″ x 14.83″ x 0.35″) (not including gasket)
  • Cutout Dimensions (W x H) – 566.7 mm x 342.4 mm (22.31″ x 13.48″)
  • Net Weight – 7.71 kg (17 lbs.)
  • Shipping Weight – 13.61 kg (30 lbs.)

Compliances and Certifications

Accessory Mounting Bracket Option

  • VESA Mounting Pattern – provides 100 mm and 75 mm VESA mounting holes for mounting devices to rear of the display, or for mounting display to a stand; note that the 23.8″ Panel Mount Display has an integrated 100 mm VESA pattern on the rear cover
  • Custom Mounting Surface – can be drilled to mount other custom devices without drilling into rear of display
  • Attachment to Display – mounts to display via mounting holes on outer edges of bracket
  • Weight Limit – up to 11.3 kg (25 lbs.)
  • Physical
    • Bracket Dimensions (W x H x D) – 497.8 mm x 180.3 mm x 12.7 mm (19.60″ x 7.10″ x 0.50″)
    • Panel Space for Mounting Devices (W x H) – 497.8 mm x 180.3 mm (19.60″ x 7.10″)
    • Total Display Depth (including bracket) – 63.1 mm (2.48″)
    • Construction – 16-gauge aluminum
23.8" Industrial Panel Mount Monitors and Touch Screens
Window OptionPart NumberPrice
Single-Touch Resistive Touch ScreenHIS-ML23.8-FTVA$1,270£1,060€1,2101.210 €HIS-ML23.8-FTVA
Multi-Touch PCAP Touch ScreenHIS-ML23.8-FPVA$1,290£1,075€1,2301.230 €HIS-ML23.8-FPVA
Tempered Glass Window (non-touch)HIS-ML23.8-FGVA$1,140£950€1,0901.090 €HIS-ML23.8-FGVA
Food Protection Window (non-touch)HIS-ML23.8-FHVA$1,225£1,025€1,1701.170 €HIS-ML23.8-FHVA
Accessory Mounting Bracket Option
Part NumberPrice
VB-22A$80£70€8080 €VB-22A
